Positive Battery

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Front Seat

Courtesy of CHRYSLER GROUP, LLC

Remove the front passenger seat. Refer to SEAT, FRONT, REMOVAL .

Fig 2: Battery Cover
Courtesy of CHRYSLER GROUP, LLC
Remove the battery cover (1).
Disconnect the negative and positive battery cables.

Fig 3: Side Scuff Plate
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Driver's side shown, passenger side similar.
Remove the passenger side scuff plate. Refer to PLATE, SCUFF, LIFTGATE, REMOVAL .

Fig 4: Scuff Plate & Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the passenger side cowl trim panel. Refer to PANEL, COWL TRIM, SIDE, REMOVAL .

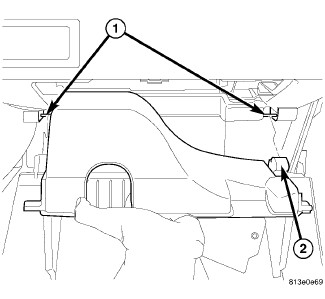

Fig 5: Removing/Installing Glove Box Assembly
Courtesy of CHRYSLER GROUP, LLC
Remove the glovebox. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .
Remove the glovebox liner.

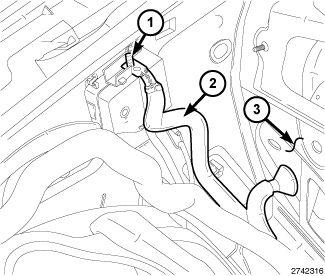

Fig 6: Retainer, Positive Battery Cable & Dash Panel
Courtesy of CHRYSLER GROUP, LLC
Remove the retainer (1) from the positive battery cable junction block.
Push the positive battery cable (2) through the dash panel (3).

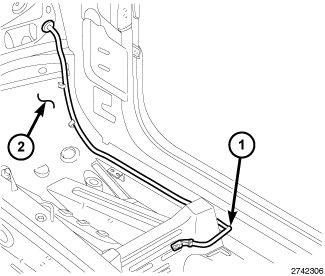

Fig 7: Positive Battery Cable & Vehicle
Courtesy of CHRYSLER GROUP, LLC
Remove the positive battery (1) cable from the vehicle (2).
