Switch, Heated Seat: Installation: Rear

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

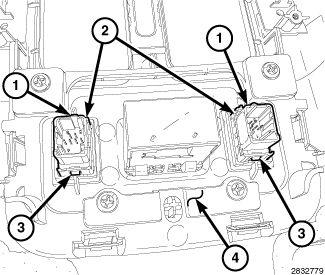

Fig 1: Trim Stick, Two Retaining Tabs & Floor Console Rear Trim Panel

Courtesy of CHRYSLER GROUP, LLC

Install the 2nd row heated seat switches (2), as necessary, into the floor console rear trim panel (4). Push the switches firmly into the trim panel until the retaining tabs (1 and 3) are fully engaged.

Fig 2: Floor Console Rear Trim Panel, Six Screws & Secure Floor Console Rear Duct
Courtesy of CHRYSLER GROUP, LLC

NOTE:
If the foam seal on the console rear duct is deformed or damaged, the seal must be replaced.
Install the floor console rear duct (2) onto the floor console rear trim panel (4).
Install the six screws (1 and 3) that secure floor console rear duct to the floor console rear trim panel. Tighten the screws securely.
Install the floor console rear trim panel (1) onto the back of the floor console. Be sure to connect any necessary electrical connectors and properly align the console ducts.
Reconnect the negative battery cable.
Verify proper 2nd row heated seat system operation.
