Switch, Heated Seat: Description: Rear
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

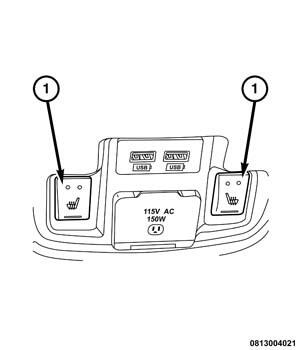

The rear heated seat switches (1) are momentary contact push button type switches that are mounted at the rear of the center floor console. These switches allow the 2nd row seat passengers to select from two different levels of electrical seat heating (HI and LO). Amber Light Emitting Diodes (LEDS) (3) in each switch indicate the level of heat in use: Two LEDs illuminate for high, one for low, and none for off. Pressing a heated seat switch once will select high-level heating. Pressing the same switch a second time will select low-level heating. Pressing the switch a third time will shut the heating elements in the seat off.
