Switch, Heated Seat: Description: Front
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

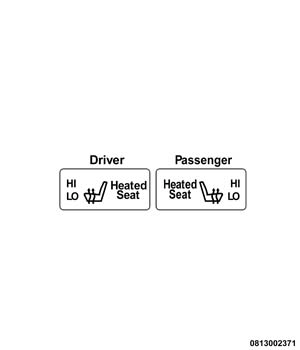

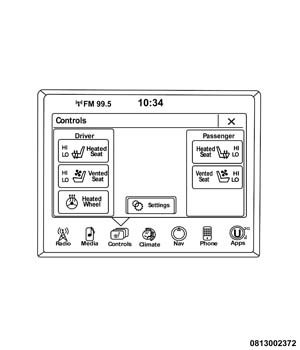

The front heated seat switches are momentary contact push button type soft switches that are located in the radio screen by selecting the climate soft push button.
These switches allow the driver and front seat passenger to select from two different levels of electrical seat heating (HI and LO). Amber Light Emitting Diodes (LEDS) in each switch indicate the level of heat in use: Two LEDs illuminate for high, one for low, and none for off. Pressing a heated seat switch once will select high-level heating. Pressing the same switch a second time will select low-level heating. Pressing the switch a third time will shut off the heating elements in the seat.
