Lamp, Courtesy, Liftgate: Removal: Bulb

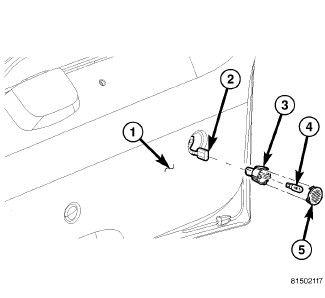

Fig 1: Courtesy Lamp Housing & Liftgate Trim Panel
GC0118518Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the lamp (3) from the liftgate trim panel. Refer to LAMP .
  3. Using a small thin-bladed screwdriver, gently pry the latch features of the lamp lens (5) away from the lamp housing and remove the lens from the housing.
  4. Pull the base of the bulb (4) straight out of the bulb holder within the lamp housing.
