Standard Procedure - Rechargeable Flashlight Battery Replacement

Fig 1: Flashlight Battery Replacement (1 Of 2)

Courtesy of CHRYSLER GROUP, LLC

1. Insert a small screwdriver or another suitable tool into each of the two notches (2) between the upper (1) and lower (3) case halves of the flashlight and use a twisting action to separate the case.

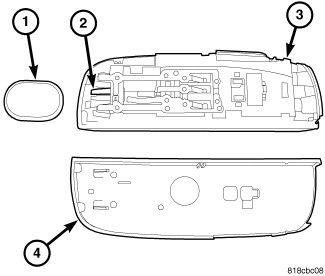

   Fig 2: Flashlight Battery Replacement (2 Of 2)

   Courtesy of CHRYSLER GROUP, LLC
2. Remove the lower case (4) from the upper case (3) and set it aside.
3. Lightly lift the latch tab (2) at the back of the upper case and slide the battery (1) rearward far enough to remove it from the case.
4. Install the new battery by sliding it between the latch tab and the case until it is engaged by the latch tab. The battery must  be installed with the positive (+  ) terminal oriented toward the upper case (3).
