Clock (Service Information): Installation: Installation

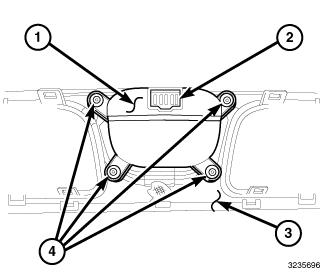

Fig 1: Retaining Screws, Clock & I/P Center Bezel

Courtesy of CHRYSLER GROUP, LLC

1. Place the clock into bezel (3) opening and then install the retaining screws (4).
2. Install the Instrument Panel Center Bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
3. Connect the battery negative cable.
4. Adjust clock to proper time.
