Front Suspension/Front/Hub and Bearing/Installation

Installation

4x2

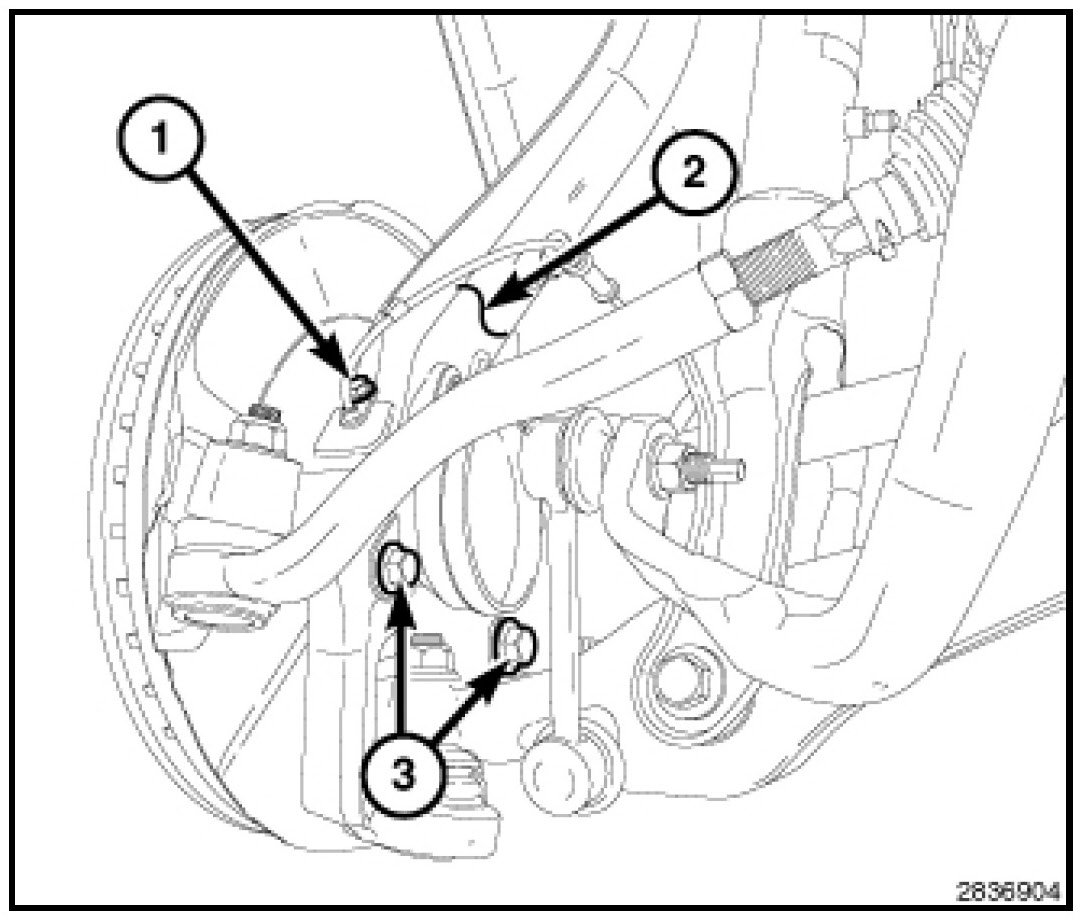

1. Position the hub bearing into the knuckle (2), install the 3 bolts (3) and tighten to 105 N.m (78 ft. lbs.).
2. Install the wheel speed sensor into the knuckle (2), install the sensor mounting bolt (1) and tighten to 11 N.m (95 in. lbs.).
3. Install the brake rotor.
4. Install the wheel and tire assembly.
5. Remove the support and lower the vehicle.

4X4

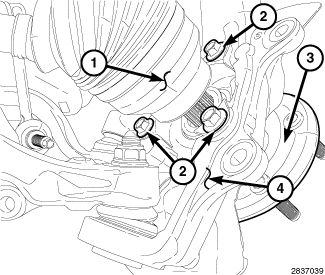

1. Position the hub/bearing, install the hub/bearing bolts (2) and tighten to 105 N.m (78 ft. lbs.).

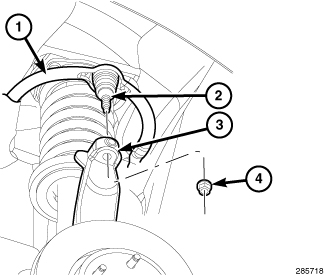

2. Support the outside of the lower control arm with a suitable holding fixture, and raise to position the upper ball joint (2) into the knuckle (3).
3. With the holding fixture holding the suspension at normal ride height, install the upper ball joint nut (4) and tighten to 95 N.m (70 ft. lbs.).
4. Install the half shaft nut and tighten to 310 N.m (229 ft. lbs.).
5. Install the brake rotor.







6. Route and attach speed sensor wiring to the knuckle.
7. Install the wheel speed sensor into the knuckle, install the mounting bolt (2) and tighten to 10.7 N.m (95 in. lbs.).

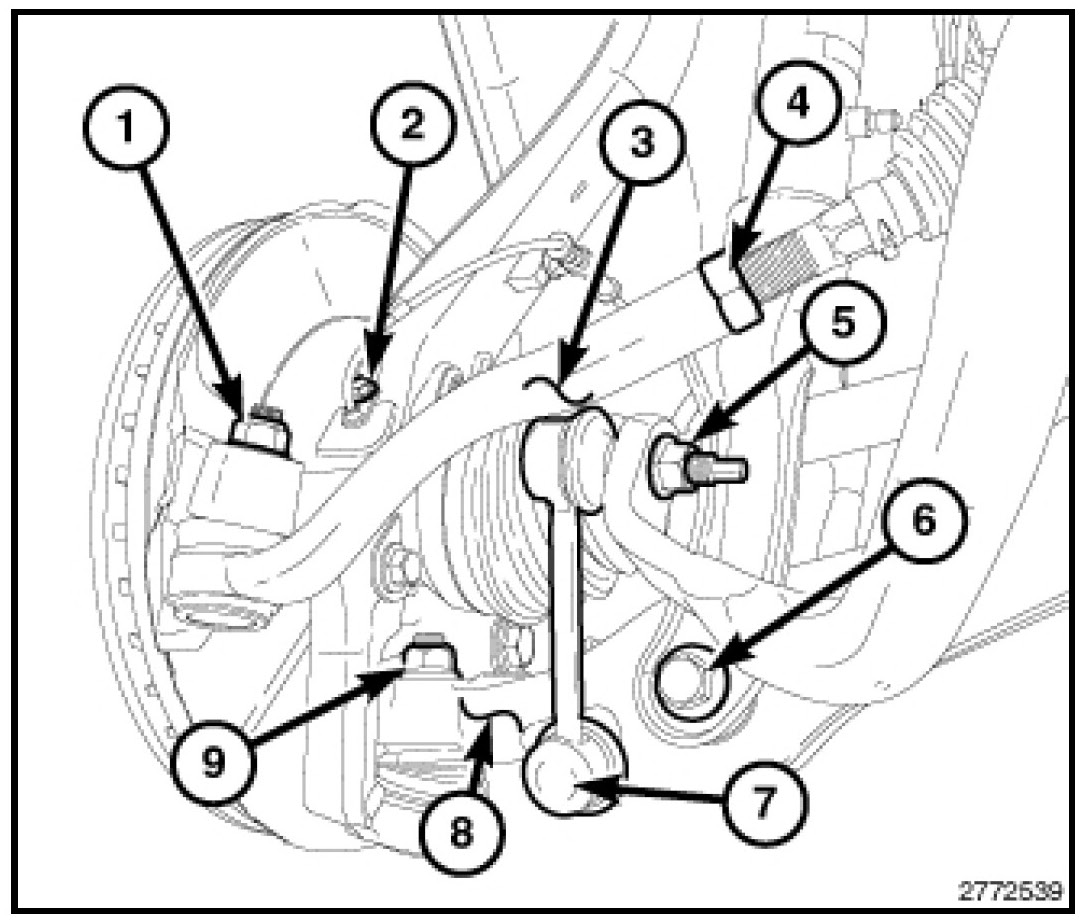

8. Position the stabilizer link (7) to lower control arm (8), install the nut and tighten to 122 N.m (90 ft. lbs.).
9. Install the tire and wheel assembly.
10. Remove the supports and lower the vehicle.
