Rear Bumpers Fascia - Removal

REMOVAL

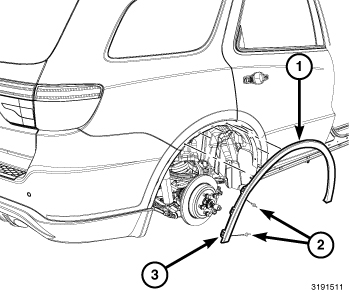

1. Remove the wheel opening flare molding (1).

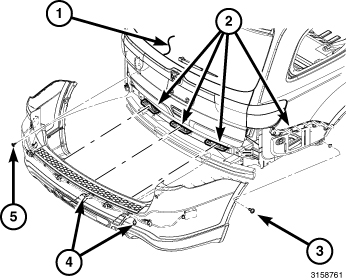

2. Open the rear liftgate (1).
3. Remove the two lower retainers (4) at the rear support beam.
4. Remove the fasteners (5) at the back sides of the quarter panels, in the liftgate opening.
5. Remove the fasteners (3) on both sides at the wheel well openings.







6. Release the integral latch features at the sides (5) and along the back (4) and separate the fascia (1) from the vehicle.
7. Disconnect the body harness electrical connector (3) and remove the fascia.
8. Remove both the park assist (6) and blind spot sensors (2), if equipped.
9. Remove the sensor electrical harness.
