Rear Bumpers Fascia - Installation

INSTALLATION

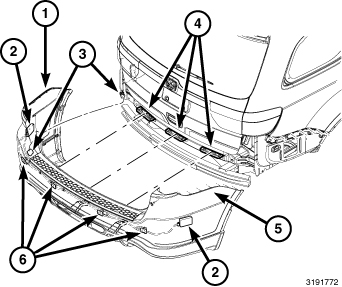

1. Install the park assist and blind spot sensors (6 and 2), if equipped.
2. Install the sensor electrical harness, if equipped.

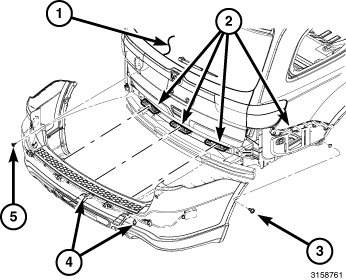

3. Position the fascia onto the vehicle and connect the body harness electrical connector (3), if equipped.







4. Slightly spread the sides of the fascia to clear the painted surfaces.
5. position the fascia and then press into place at the sides and along the liftgate opening to engage the integral latches (2).
6. Install the two lower retainers (4) at the rear support beam.
7. Install the fasteners (5) at the liftgate opening.

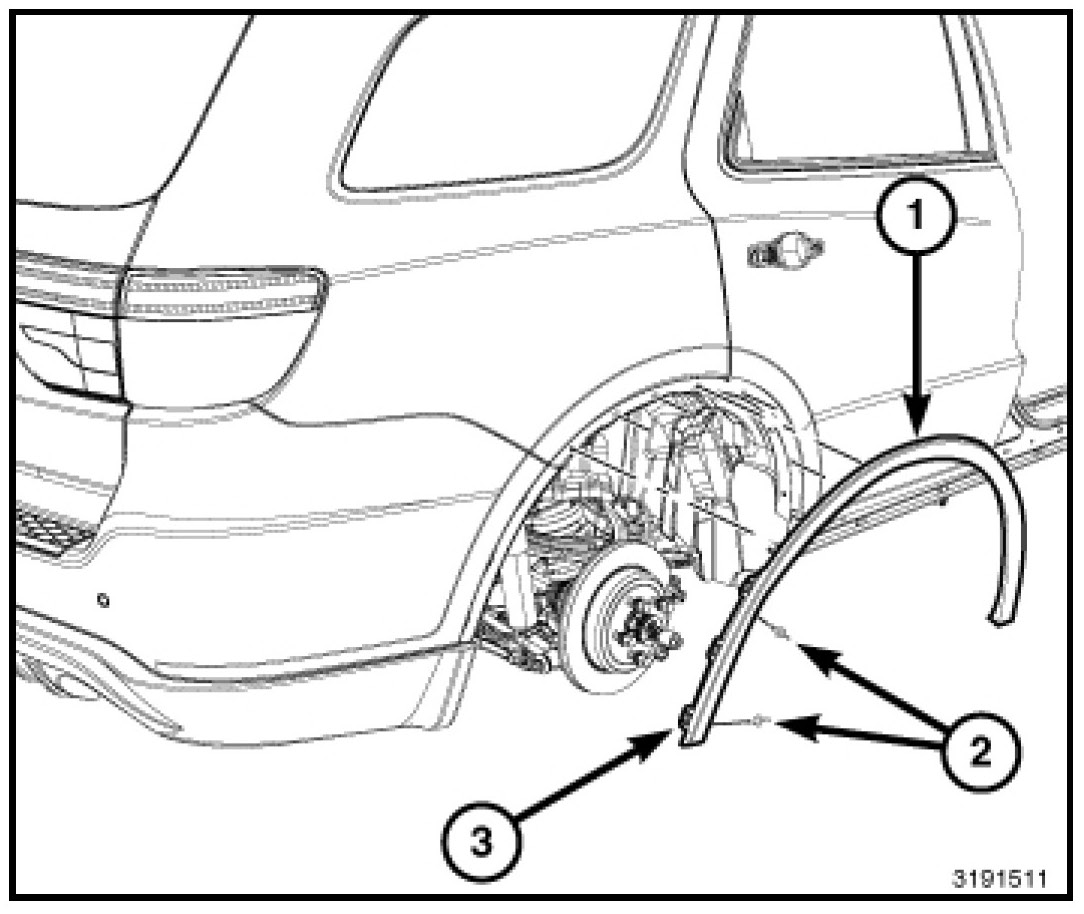

8. Install the fasteners (3) on both sides at the wheel well openings







9. Install the wheel opening flare moldings.
