B1C3A-1ST Row Driver Retractor TENSIONER Circuit Open: Notes

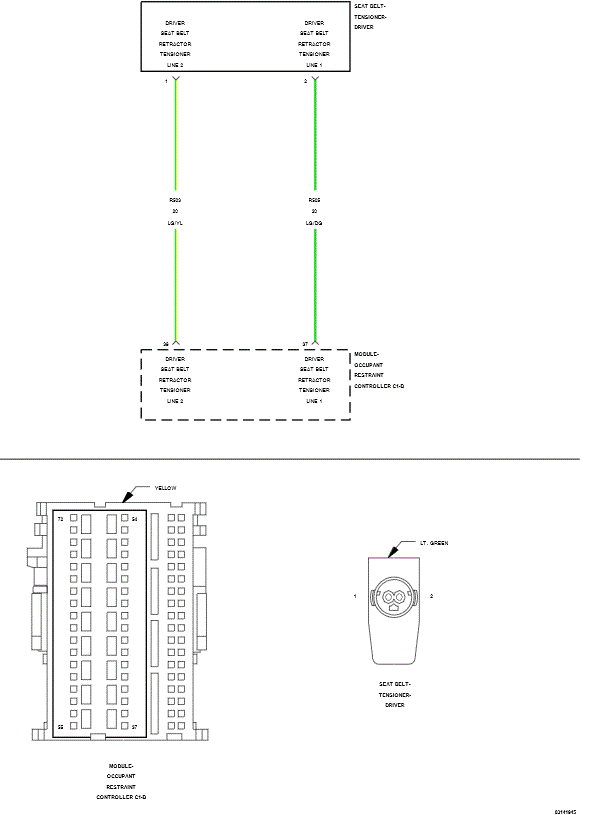

Fig 1: 1st Row Driver Retractor Tensioner Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
