Sensor, Speed, Transfer Shaft: Description: Description

Fig 1: Identifying Speed Sensors

Courtesy of CHRYSLER GROUP, LLC

The Transfer Shaft Speed Sensor (3) is a two-wire magnetic pickup device that generates AC signals as rotation occurs.

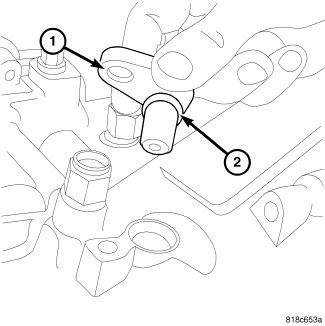

Fig 2: View Of Speed Sensor & O-Ring

Courtesy of CHRYSLER GROUP, LLC

The Transfer Shaft Speed Sensor (1) is bolted to the transaxle case and uses a O-ring (2) to seal it to the transaxle case.
