Seal, Oil Pump: Installation: Installation
WARNING: This page is about a different variant/trim than selected.

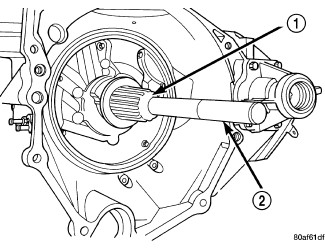

| 1 - SEAL INSTALLER C-4193 |
| 2 - HANDLE C-4171 |
- Using Seal Installer (special tool #C-4193A, Installer, Seal) (1), install oil pump seal. Refer to Fig 1.
- Install transaxle to vehicle. Refer to INSTALLATION .
