Pump, Transmission Oil: Description: Description

WARNING: This page is about a different variant/trim than selected.

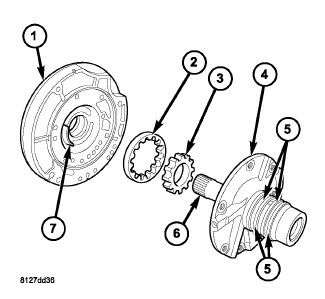

Fig 1: View Of Oil Pump Assembly Components

Courtesy of CHRYSLER GROUP, LLC

1 - PUMP BODY

2 - OUTER GEAR

3 - INNER GEAR

4 - REACTION SHAFT SUPPORT

5 - SEAL RINGS (4)

6 - REACTION SHAFT

7 - CRESCENT

The oil pump is located in the pump housing inside the bell housing of the transaxle case. Refer to Fig 1. The oil pump consists of an inner and outer gear, a housing, and a cover that also serves as the reaction shaft support.
