Cover(S), Engine Timing: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: Upper Radiator Hose & Thermostat Housing

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Drain the cooling system. Refer to STANDARD PROCEDURE .
Remove the upper radiator hose (2) and thermostat housing (1). Refer to THERMOSTAT, REMOVAL .

Fig 2: Radiator Hose & Heater Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the heater core return hose (1) from the water pump housing.
Remove the lower radiator hose (2) from the water pump housing.

Fig 3: Heater Core Supply Hose & Coolant Outlet Housing
Courtesy of CHRYSLER GROUP, LLC
Remove the heater core supply hose (1) from the coolant outlet housing (2).

Fig 4: Heater Core Supply Tube Support Bracket & Retaining Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (2) and reposition the heater core supply tube (1).

Fig 5: Belt Tensioner, Accessory Drive Belt
Courtesy of CHRYSLER GROUP, LLC
Remove the accessory drive belt (7). Refer to BELT, SERPENTINE, REMOVAL .
Remove the accessory drive belt tensioner (8). Refer to TENSIONER, BELT, REMOVAL .
Remove the accessory idler pulley (2). Refer to PULLEY, IDLER, REMOVAL .
Remove the power steering pump pulley (1). Refer to PULLEY, POWER STEERING PUMP, REMOVAL .
Remove the crankshaft vibration damper (6). Refer to DAMPER, VIBRATION, REMOVAL .

Fig 6: Cylinder Head Cover Mounting Bolts & Studbolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left cylinder head cover shown in illustration, right cylinder head cover similar.
Remove the right and left cylinder head covers. Refer to CYLINDER HEAD, REMOVAL .

Fig 7: Oil Pan Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the upper and lower oil pans. Refer to PAN, OIL, REMOVAL .

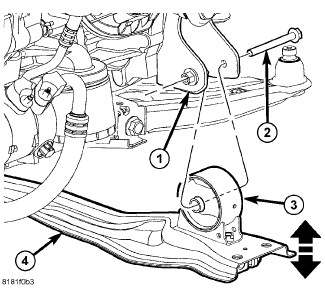

Fig 8: Fore/Aft Crossmember, Engine Roll Mount & Through Bolt
Courtesy of CHRYSLER GROUP, LLC
Temporarily reinstall the front fore and aft crossmember (4). Refer to CROSSMEMBER, FRONT FORE AND AFT, INSTALLATION , CROSSMEMBER, FRONT SUSPENSION, INSTALLATION and CROSSMEMBER, REAR SUSPENSION, INSTALLATION .

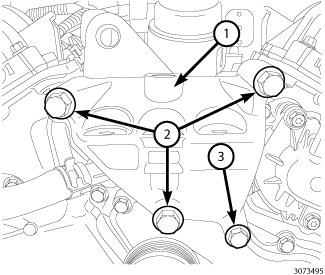

Fig 9: Right Engine Mount Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the right engine mount isolator and bracket (1). Refer to INSULATOR, ENGINE MOUNT, LEFT, REMOVAL , INSULATOR, ENGINE MOUNT, RIGHT, REMOVAL , INSULATOR, ENGINE MOUNT, REAR, REMOVAL and INSULATOR, ENGINE MOUNT, FRONT, REMOVAL .

Fig 10: Locating Timing Cover Attaching Bolts & Locator Pins
Courtesy of CHRYSLER GROUP, LLC

NOTE:
It is not necessary to remove the water pump or the coolant outlet housing for engine timing cover removal.
Remove the twenty-two M6 bolts (3) and one M8 bolt (4) from the timing cover.

Fig 11: Timing Cover Removal Pry Points
Courtesy of CHRYSLER GROUP, LLC
Using the seven indicated pry points, carefully remove the timing cover.

Fig 12: Coolant Outlet Housing, Water Pump & Bolts
Courtesy of CHRYSLER GROUP, LLC
If required, remove the remaining four M6 bolts (2) and the coolant outlet housing (1) from the engine timing cover.
If required, remove the remaining four M6 bolts (4) and the water pump (3) from the engine timing cover.

Fig 13: Sealant At Cylinder Head Bosses, Right & Left Flanges, Cylinder Head-To-Engine Block T-Joints & Cover To Right Cam Chain Tensioner Gap
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not use oil based liquids, wire brushes, abrasive wheels or metal scrapers to clean the engine gasket surfaces. Use only isopropyl (rubbing) alcohol, along with plastic or wooden scrapers. Improper gasket surface preparation may result in engine fluid leakage.
Remove all residual sealant from the timing chain cover, cylinder head and engine block mating surfaces. Refer to Engine - Standard Procedure .

Fig 14: Coolant Outlet Housing Gasket & Water Pump Gasket
Courtesy of CHRYSLER GROUP, LLC
Remove and discard the coolant outlet housing gasket (1) and the water pump gasket (2).
