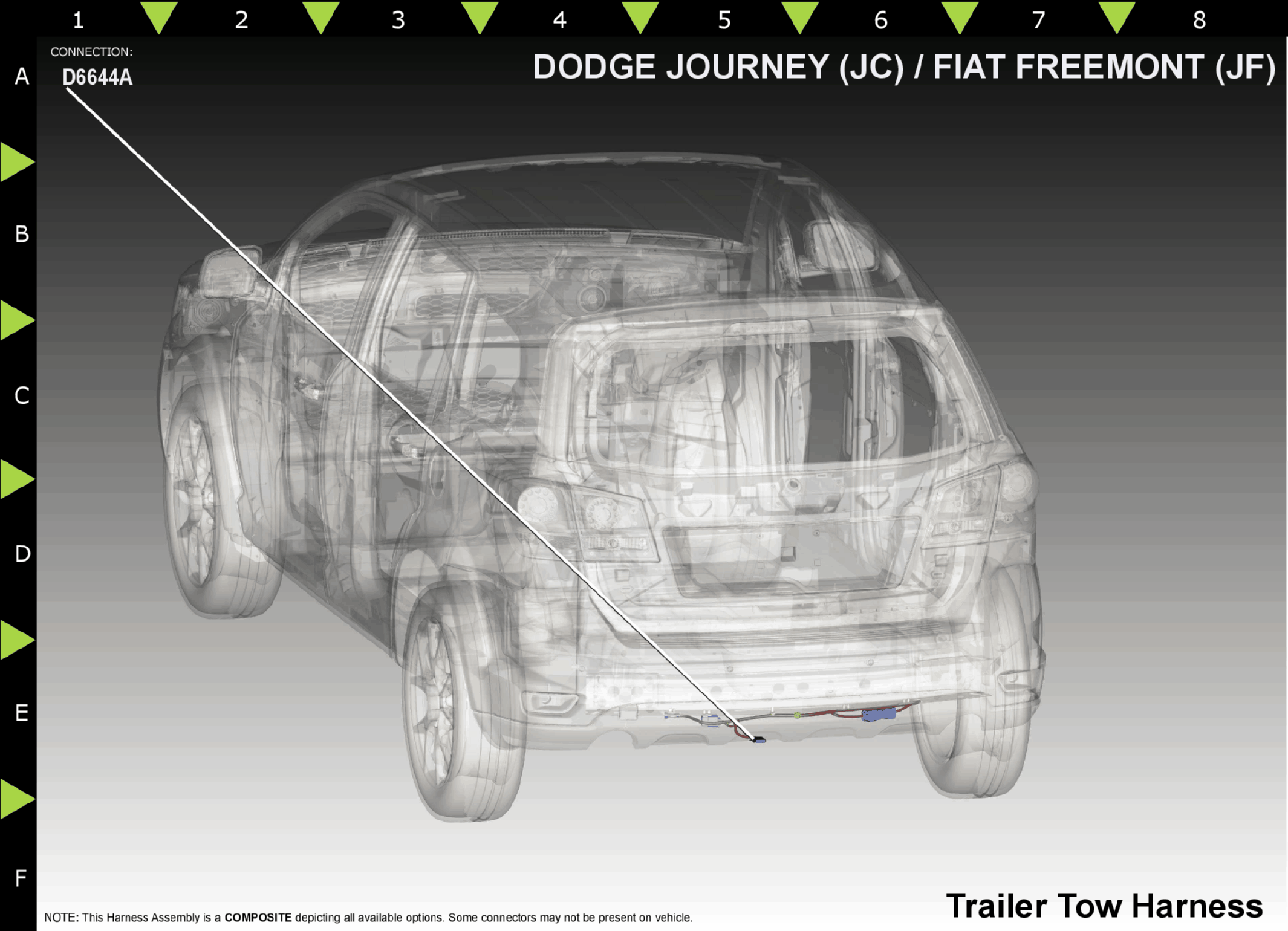

Wiring-Trailer Tow 7-Way (D6644A)
Harness-Family: Trailer_Tow
Color: BLACK
Gender: MALE
Part Number: 13596716
Part Description: 4 WAY BLACK UNSEALED M/F CONNECTOR
Connector No: D6644A
Option: Standard
Repair Kit Part Number: 05189747AA
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z923 | WT | 18 | GROUND | N/A | ||
| 2 | L217 | BR | 18 | PARK LAMP FEED | N/A | ||
| 3 | L615 | YL | 18 | TRAILER TOW LEFT STOP/TURN SIGNAL | N/A | ||
| 4 | L614 | LG | 18 | TRAILER TOW RIGHT STOP/TURN SIGNAL | N/A | ||
|
|||||||
