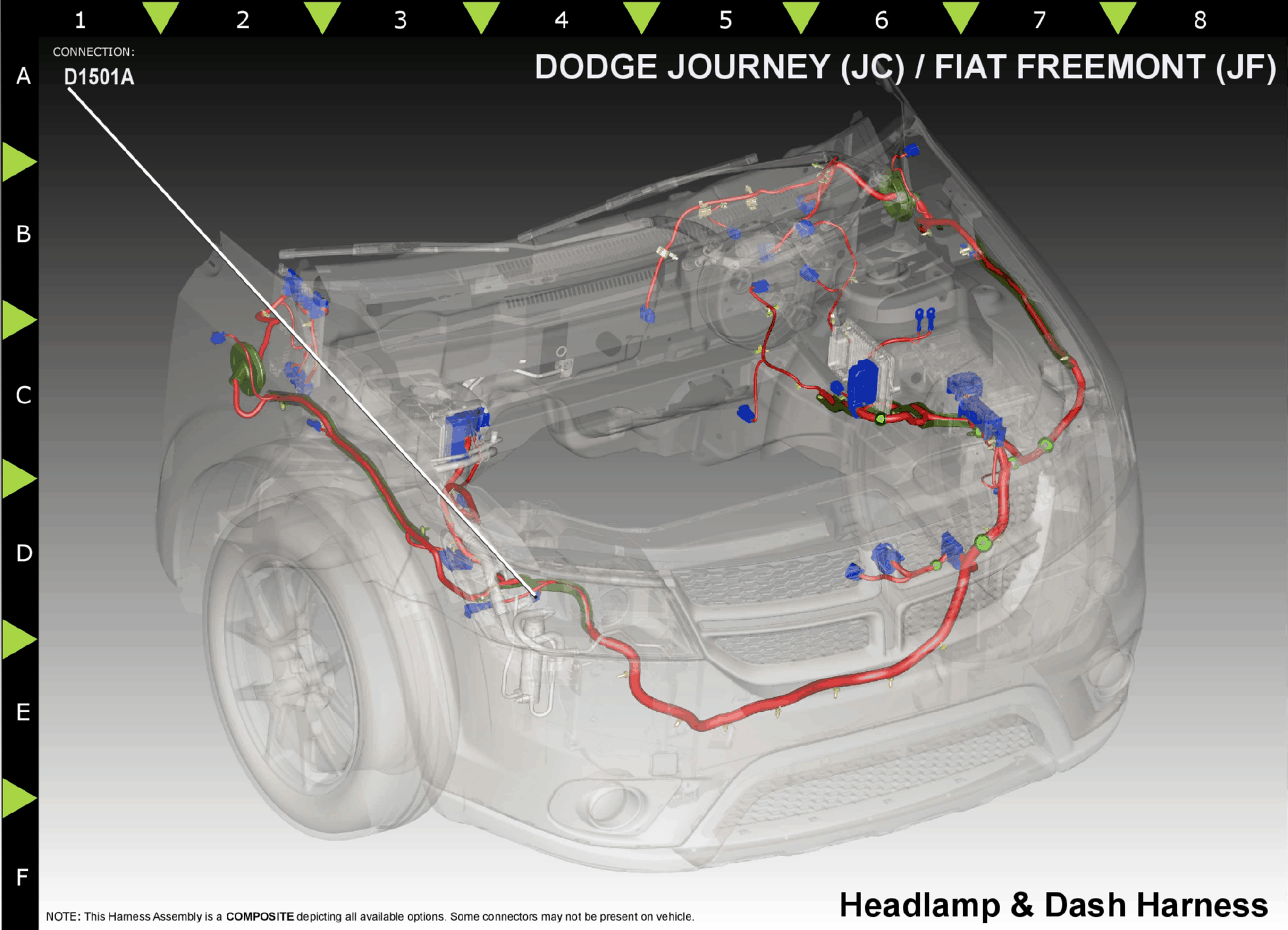

Transducer-A/C Pressure (D1501A)
Harness-Family: HDLP_Dash
Color: BLACK
Gender: FEMALE
Part Number: 1488991-1
Part Description: CONNECTOR ASSY-STANDARD LATCH VERSION
Connector No: D1501A
Option: Standard
Repair Kit Part Number: 68137864AA
Cavity Count: 3
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | C818 | PK/YL | 20 | A/C PRESSURE 5 VOLT SUPPLY | DIESEL | ||
| 1 | F855 | PK/YL | 20 | 5 VOLT SUPPLY | GAS | ||
| 2 | C18 | LB/BR | 20 | A/C PRESSURE SIGNAL | N/A | ||
| 3 | C918 | BR/WT | 20 | A/C PRESSURE RETURN | DIESEL | ||
| 3 | K900 | DB/DG | 20 | SENSOR GROUND | GAS | ||
|
|||||||
