Switch-Window/Door Lock-Driver C1 (D2300A)

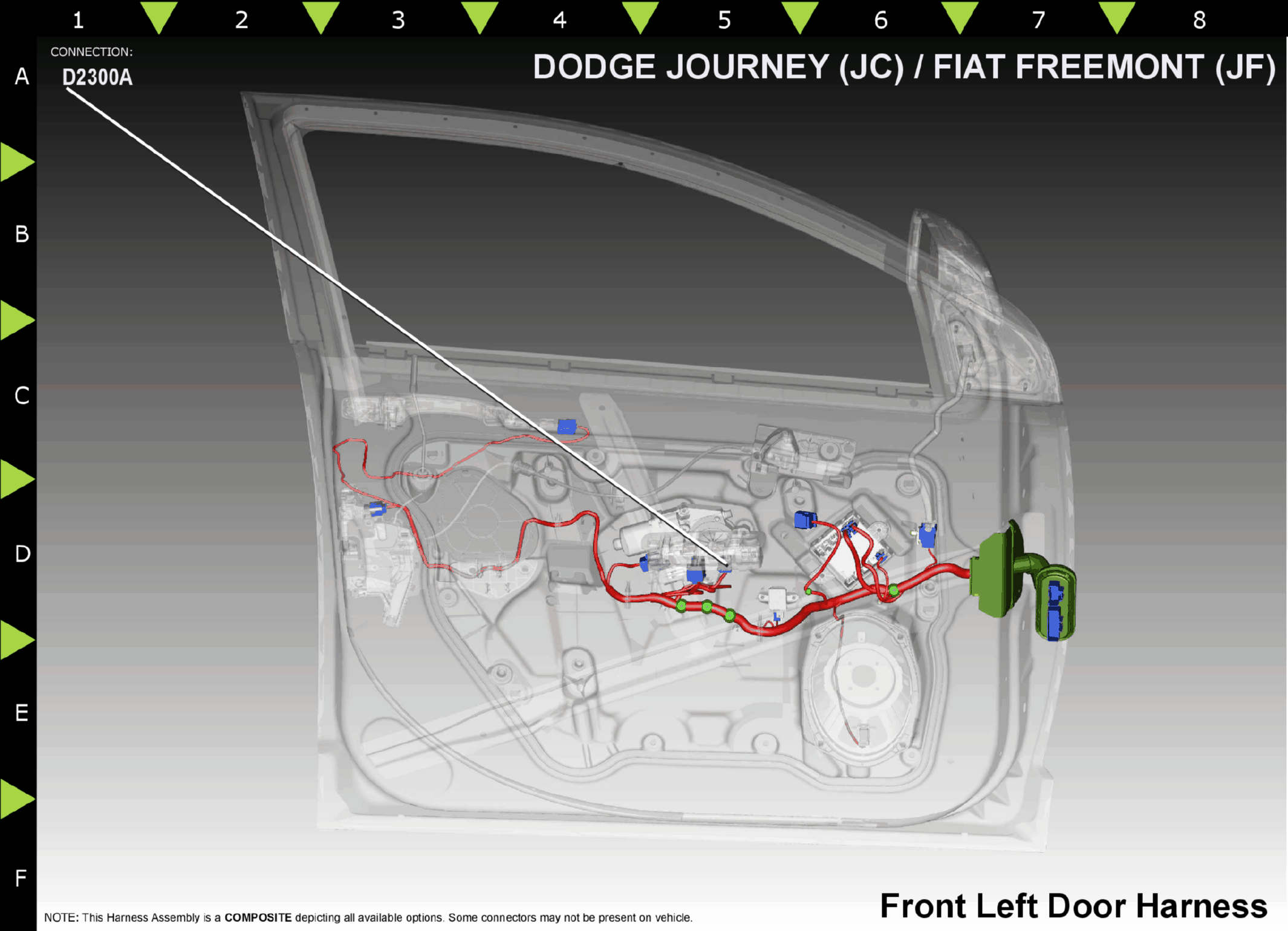

Harness-Family: Door_Front_Left
Color: BLACK
Gender: FEMALE
Part Number: 15486854
Part Description: MICRO HVT UNSEALED CONNECTOR
Connector No: D2300A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 10
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P74 | TN | 22 | PASSENGER MIRROR HORIZONTAL DRIVER | N/A | ||
| 2 | P71 | TN/DG | 22 | DRIVER MIRROR VERTICAL DRIVER | N/A | ||
| 3 | G161 | VT | 22 | LEFT DOOR LOCK SWITCH MUX | N/A | ||
| 4 | P371 | TN/BK | 22 | DOOR LOCK SW RTN DRIV | N/A | ||
| 6 | P72 | TN/WT | 22 | PASSENGER MIRROR VERTICAL DRIVER | N/A | ||
| 7 | P76 | TN/LB | 22 | MIRROR COMMON DRIVER | N/A | ||
| 8 | P75 | TN/LG | 22 | DRIVER MIRROR HORIZONTAL DRIVER | N/A | ||
| 9 | A922 | RD | 22 | FUSED B(+) | N/A | ||
|
|||||||
