Switch-Sunroof (D2294A)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 34179043

Part Description: METRI-PACK 150 UNSEALED Female CONNECTOR

Connector No: D2294A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Switch-Sunroof Connector End View

Courtesy of CHRYSLER

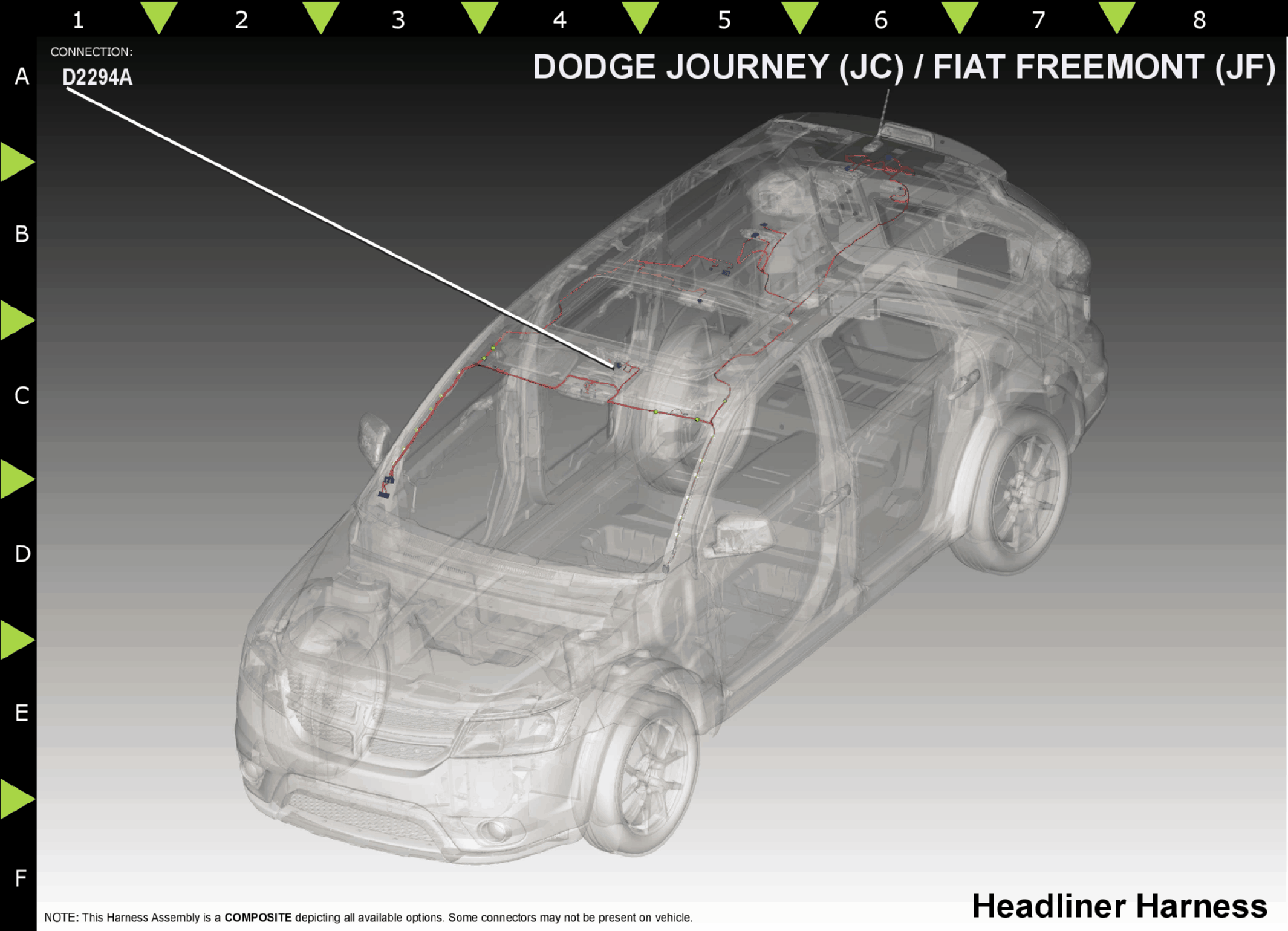

Fig 2: Switch-Sunroof Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

OR/YL

SUNROOF VENT SWITCH SENSE

N/A

OR/LG

SUNROOF SWITCH SUPPLY

N/A

OR/LB

SUNROOF CLOSE SWITCH SENSE

N/A

OR/TN

SUNROOF OPEN SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
