Switch-Steering Wheel-Right (D2320A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9415

Part Description: Not Available

Connector No: D2320A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 15

Fig 1: Switch-Steering Wheel-Right Connector End View

Courtesy of CHRYSLER

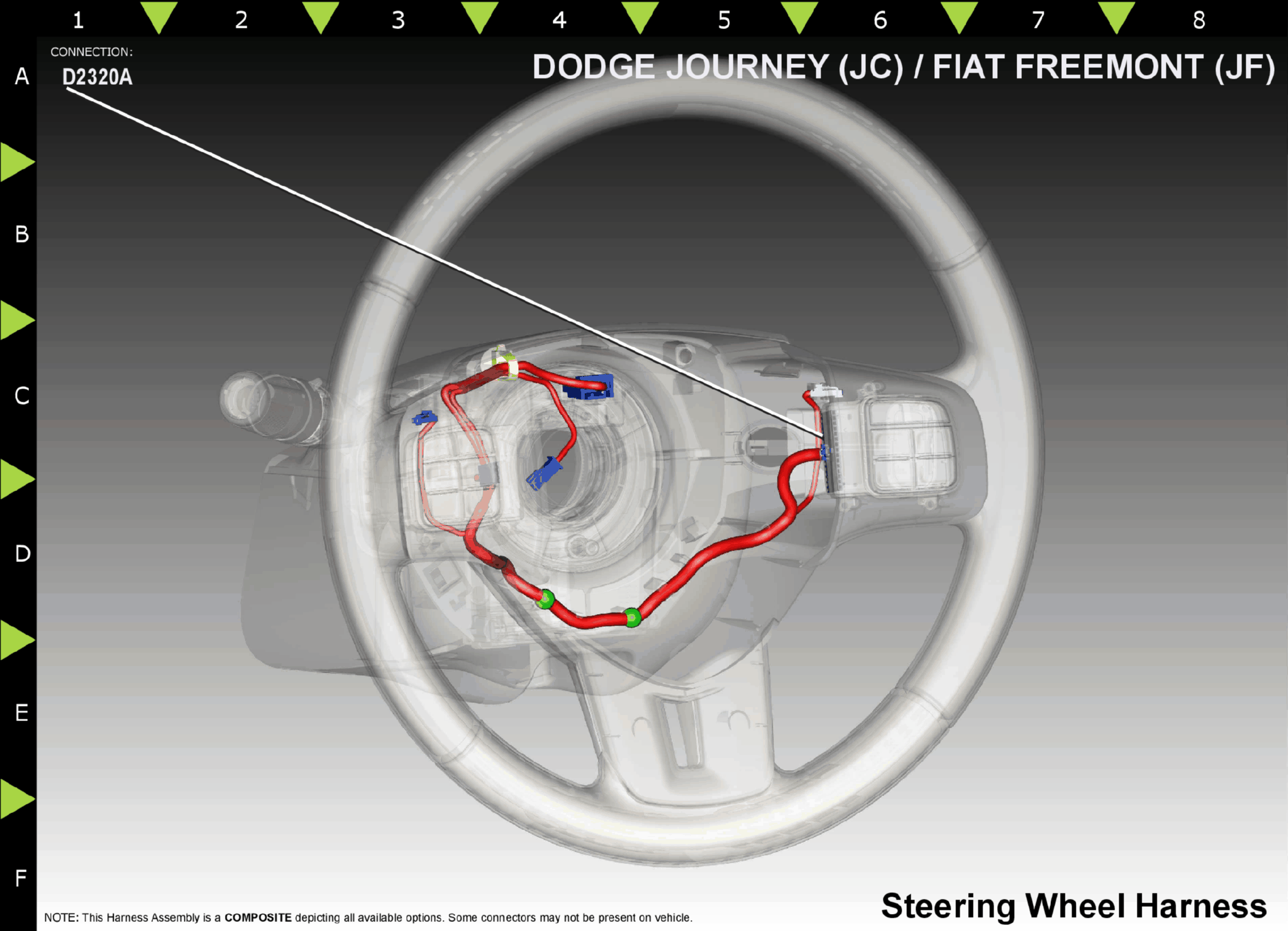

Fig 2: Switch-Steering Wheel-Right Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D507

LIN BUS

N/A

STEERING WHEEL SWITCH ILLUMINATION

N/A

G106

EVIC MUX SIGNAL

N/A

X20

RADIO CONTROL MUX

N/A

A929

FUSED B(+)

N/A

WT/PK

HORN SWITCH SENSE

N/A

Z910

WT/YL

GROUND

N/A

G907

DB/WT

EVIC MUX RETURN

N/A

X920

RADIO CONTROL MUX RETURN

N/A

V72

YL/BK

S/C SIGNAL 2

N/A

V937

S/C SWITCH GROUND

N/A

V71

S/C SIGNAL 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
