Switch-Seat Adjuster-Driver Lumbar (D2288)

Harness-Family: Seat_Driver

Color: BLACK

Gender: FEMALE

Part Number: 15326900

Part Description: GT 280 UNSEALED Female CONNECTOR ASM

Connector No: D2288

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Switch-Seat Adjuster-Driver Lumbar Connector End View

Courtesy of CHRYSLER

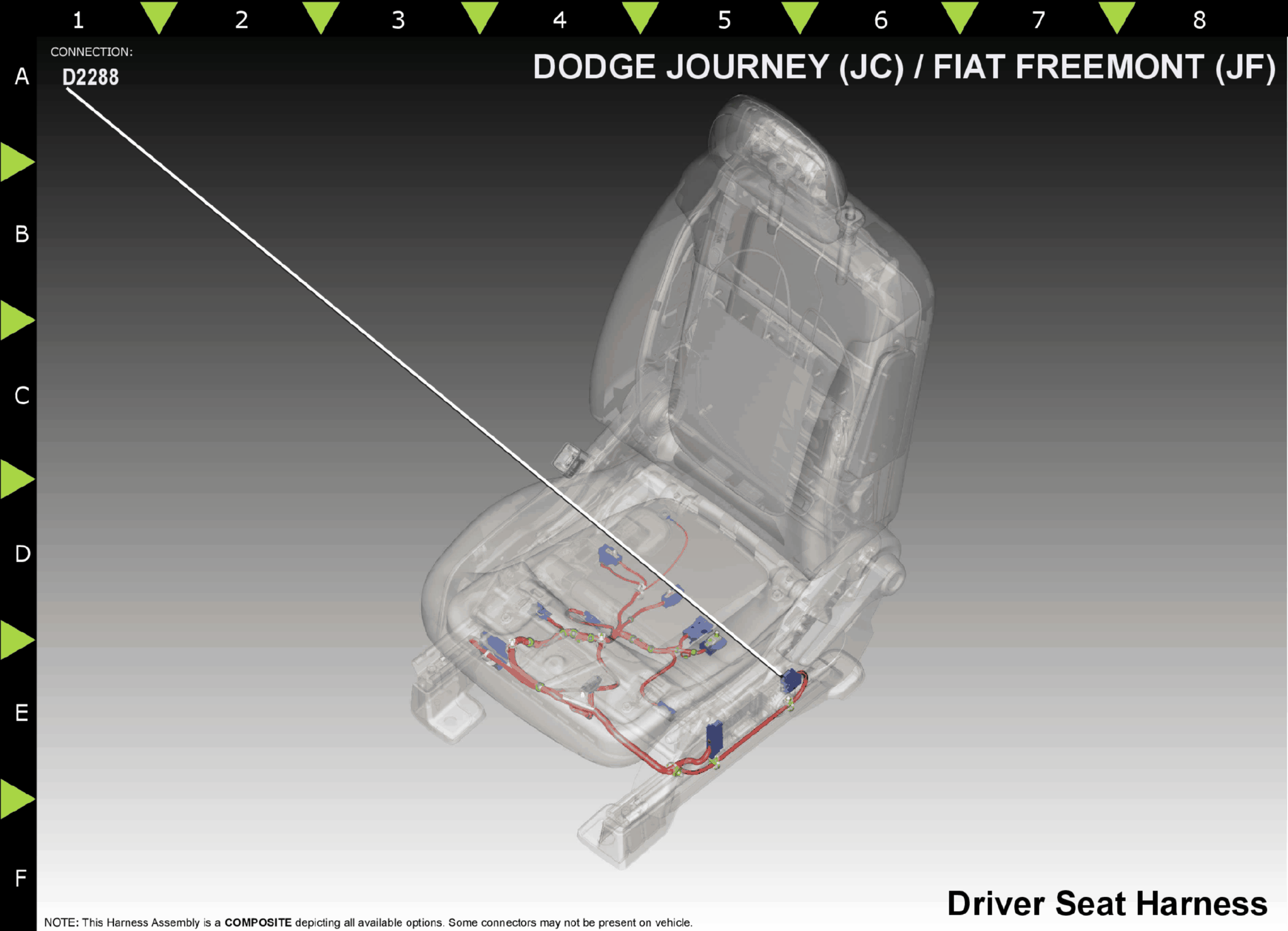

Fig 2: Switch-Seat Adjuster-Driver Lumbar Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A942

FUSED B(+)

N/A

P105

DRIVER SEAT LUMBAR OUT DRIVER

N/A

P107

LG/OR

DRIVER SEAT LUMBAR IN DRIVER

N/A

P170

LG/BR

LUMBAR UPWARD DRIV

N/A

P172

LG/WT

LUMBAR DOWNWARD DRIV

N/A

Z911

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
