Switch-Remote Radio-Left (D2276A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 50-57-9402

Part Description: INSULATOR

Connector No: D2276A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Switch-Remote Radio-Left Connector End View

Courtesy of CHRYSLER

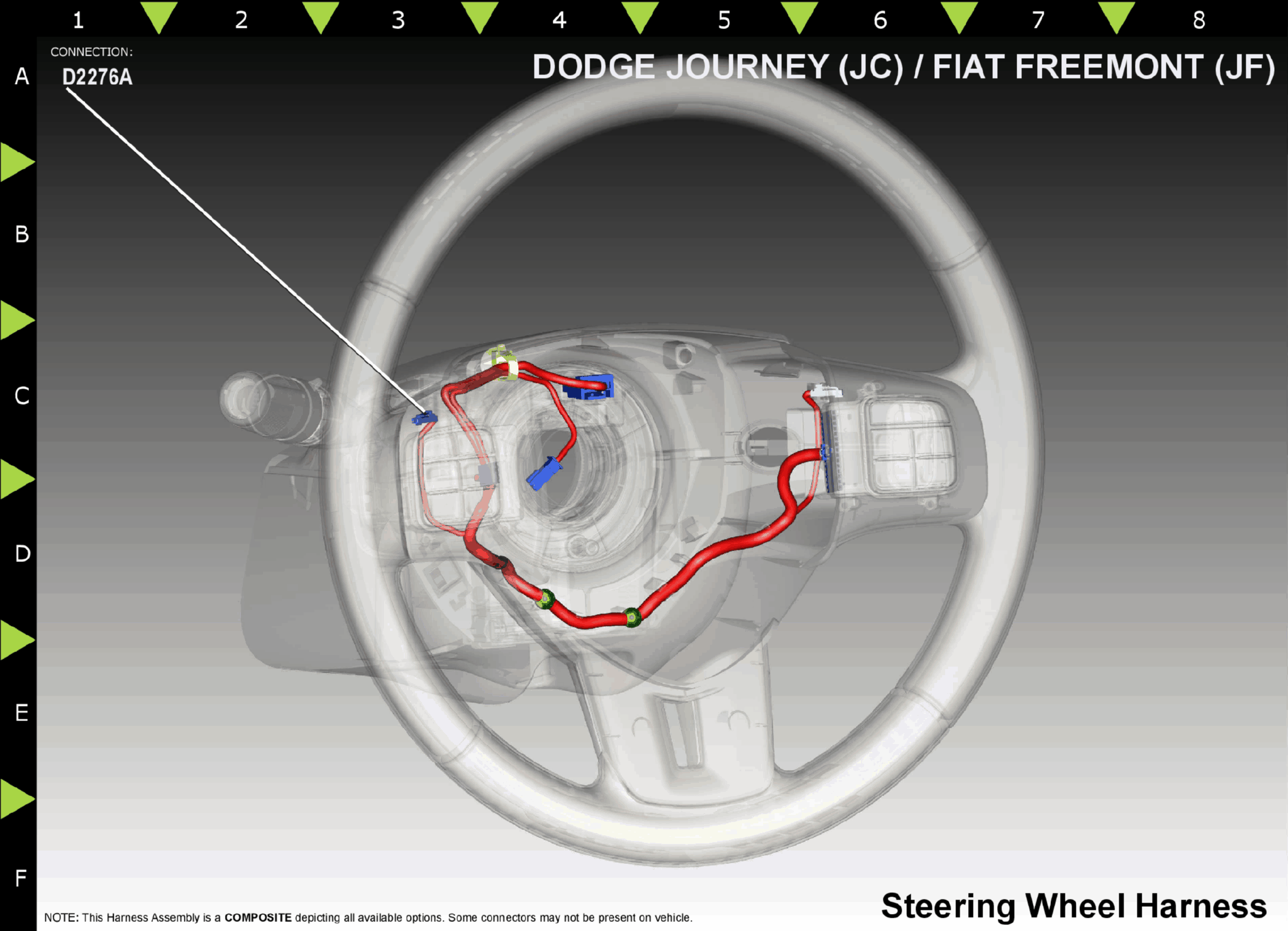

Fig 2: Switch-Remote Radio-Left Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X920

RADIO CONTROL MUX RETURN

N/A

X20

RADIO CONTROL MUX

N/A

⁽¹⁾	Pins not listed are not used for this connector
