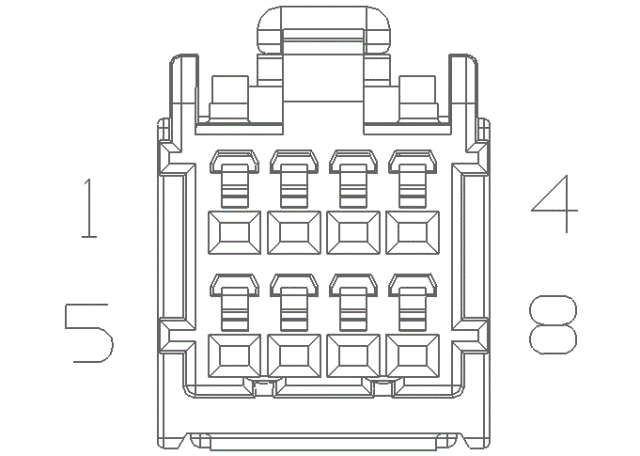

Switch-Rear Blower Control (D2248A)

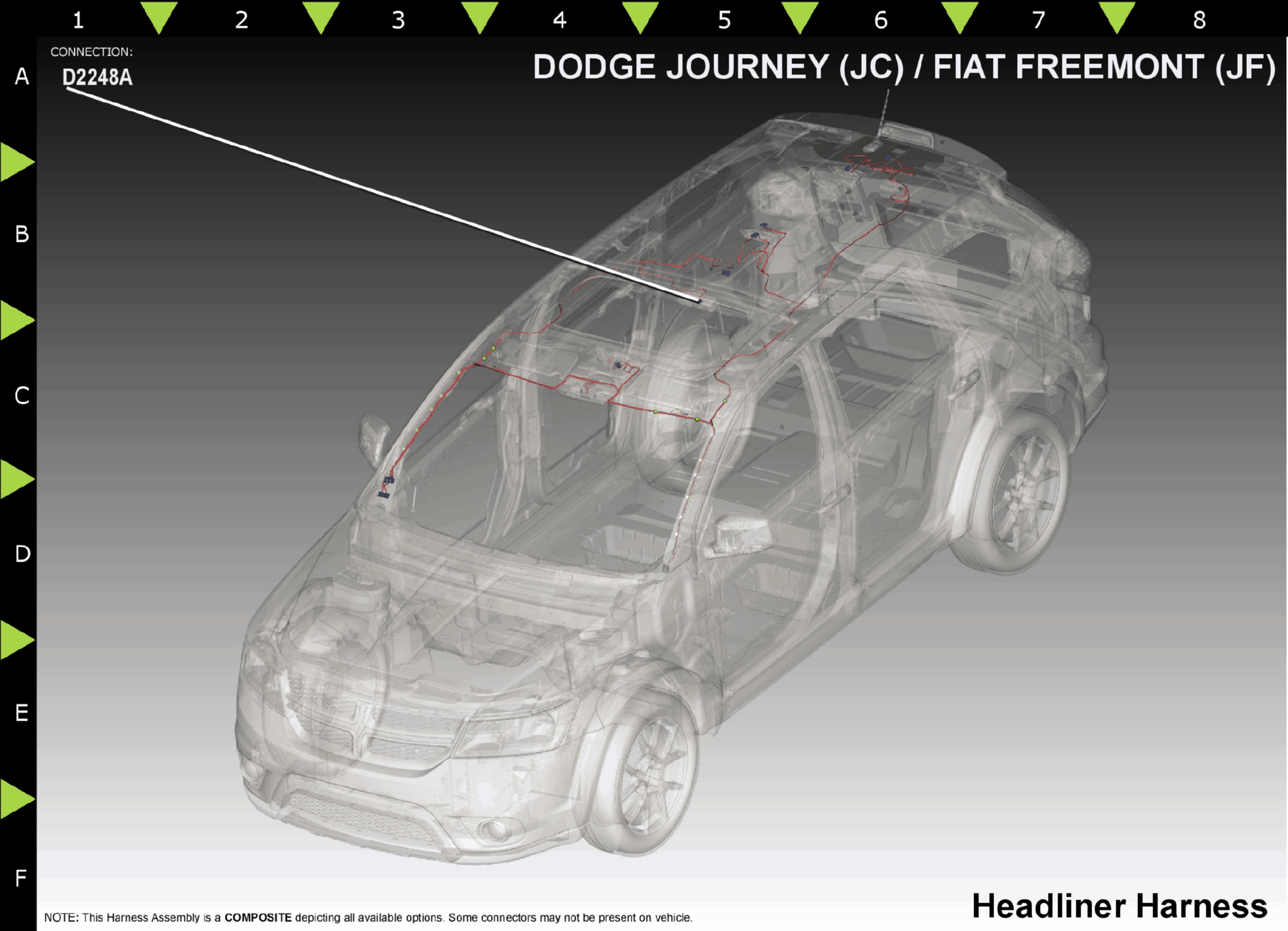

Harness-Family: Headliner
Color: BLACK
Gender: FEMALE
Part Number: 13639753
Part Description:040 Female CONNECTOR
Connector No: D2248A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 8
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | C53 | LB | 22 | REAR MODE DOOR DRIVER (B) | N/A | ||
| 2 | C11 | LB/OR | 22 | REAR BLOWER SIGNAL | N/A | ||
| 3 | C955 | LB | 22 | HVAC MUX RETURN | N/A | ||
| 4 | C800 | DB/GY | 22 | 5 VOLT SUPPLY | N/A | ||
| 5 | Z907 | BK | 20 | GROUND | N/A | ||
| 7 | G21 | VT/LB | 22 | REAR BLOWER ON INDICATOR DRIVER | N/A | ||
| 8 | C254 | LB/DB | 22 | REAR A/C TEMP CONTROL SIGNAL | N/A | ||
|
|||||||
