Switch-Horn (D2246A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1-969521-1

Part Description: Not Available

Connector No: D2246A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Switch-Horn Connector End View

GCWD1016796

Courtesy of CHRYSLER

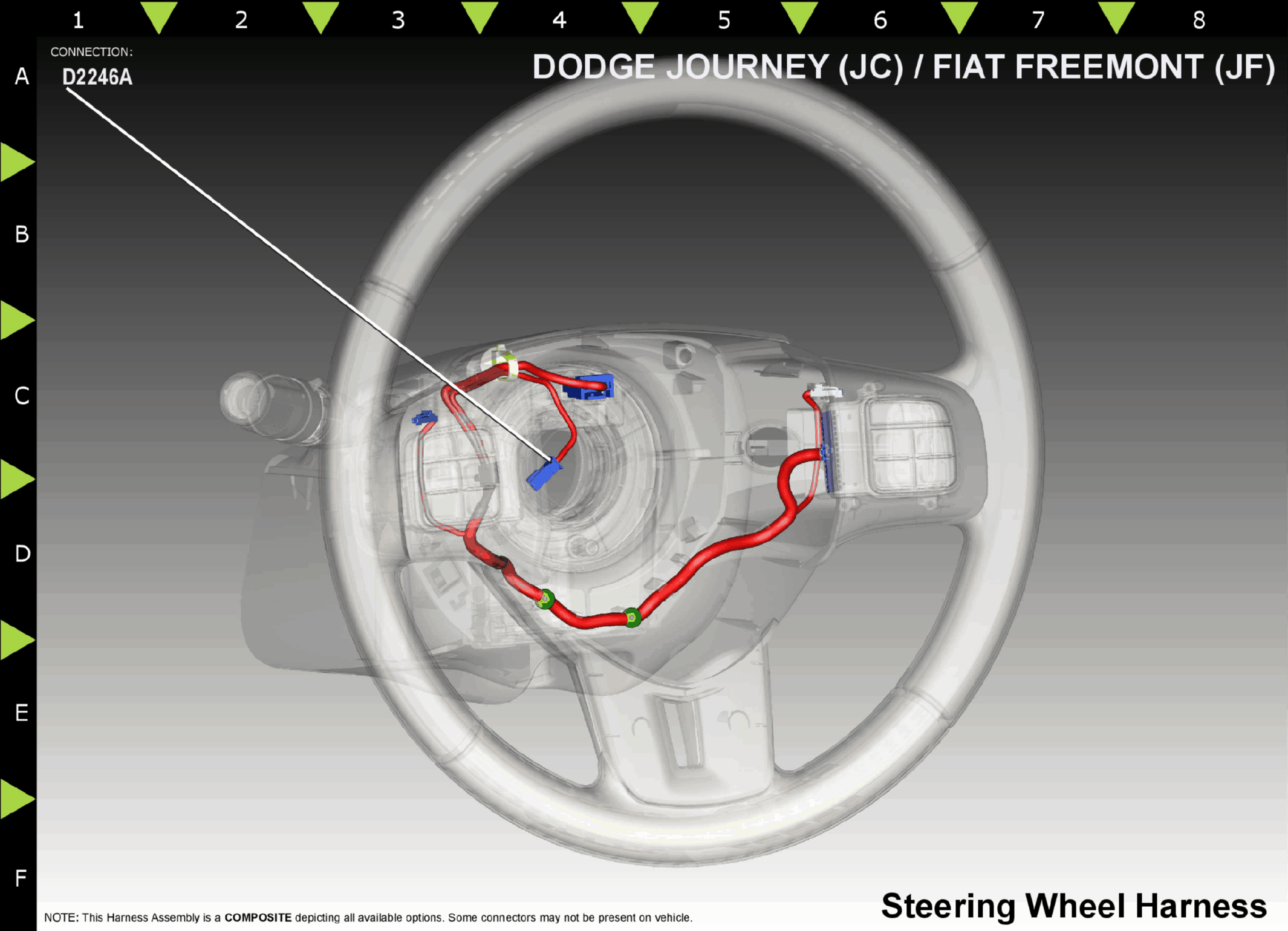

Fig 2: Switch-Horn Component Location

GCWD1187918

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X920

BR

22

RADIO CONTROL MUX RETURN

N/A

2

X3

WT/Pl

22

HORN SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
