Switch-Engine Oil Pressure (2.4L) (D2266)

Harness-Family: Engine

Color: LIGHT GREEN

Gender: FEMALE

Part Number: 04688917

Part Description: Not Available

Connector No: D2266

Option: 2.4L

Repair Kit Part Number: 05019913AA

Cavity Count: 2

Fig 1: Switch-Engine Oil Pressure Connector End View (2.4L)

Courtesy of CHRYSLER

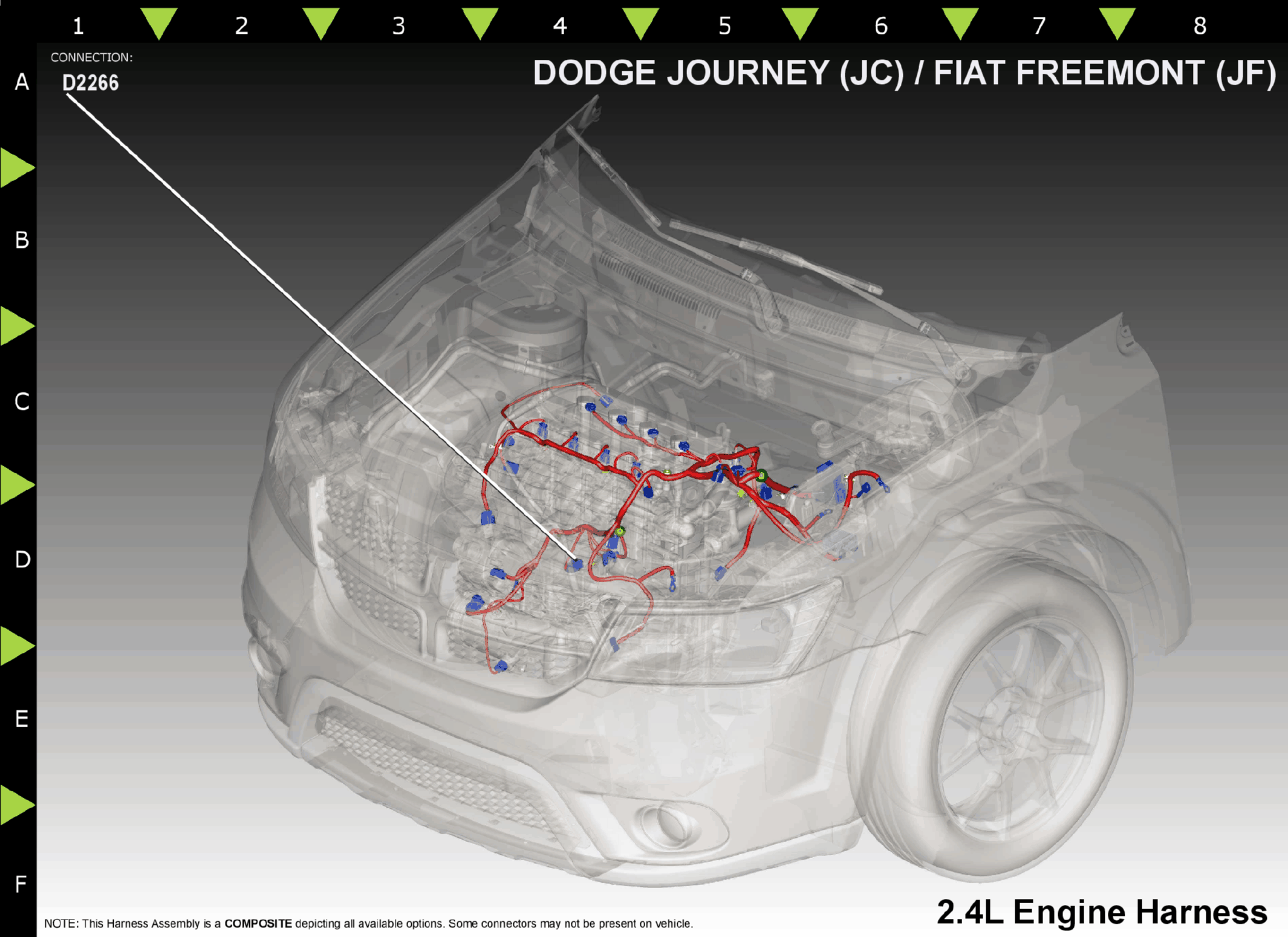

Fig 2: Switch-Engine Oil Pressure Component Location (2.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

VT/GY

OIL PRESSURE SIGNAL

N/A

G61

BK/VT

EOP BREATHER

N/A

⁽¹⁾	Pins not listed are not used for this connector
