Switch-Door Handle-Exterior-Left Front (D2507A)

Harness-Family: Door_Front_Left

Color: BLACK

Gender: FEMALE

Part Number: 7283-6079-30

Part Description: YESC 0.64 2P SEALED CONNECTOR ASSY

Connector No: D2507A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Switch-Door Handle-Exterior-Left Front Connector End View

Courtesy of CHRYSLER

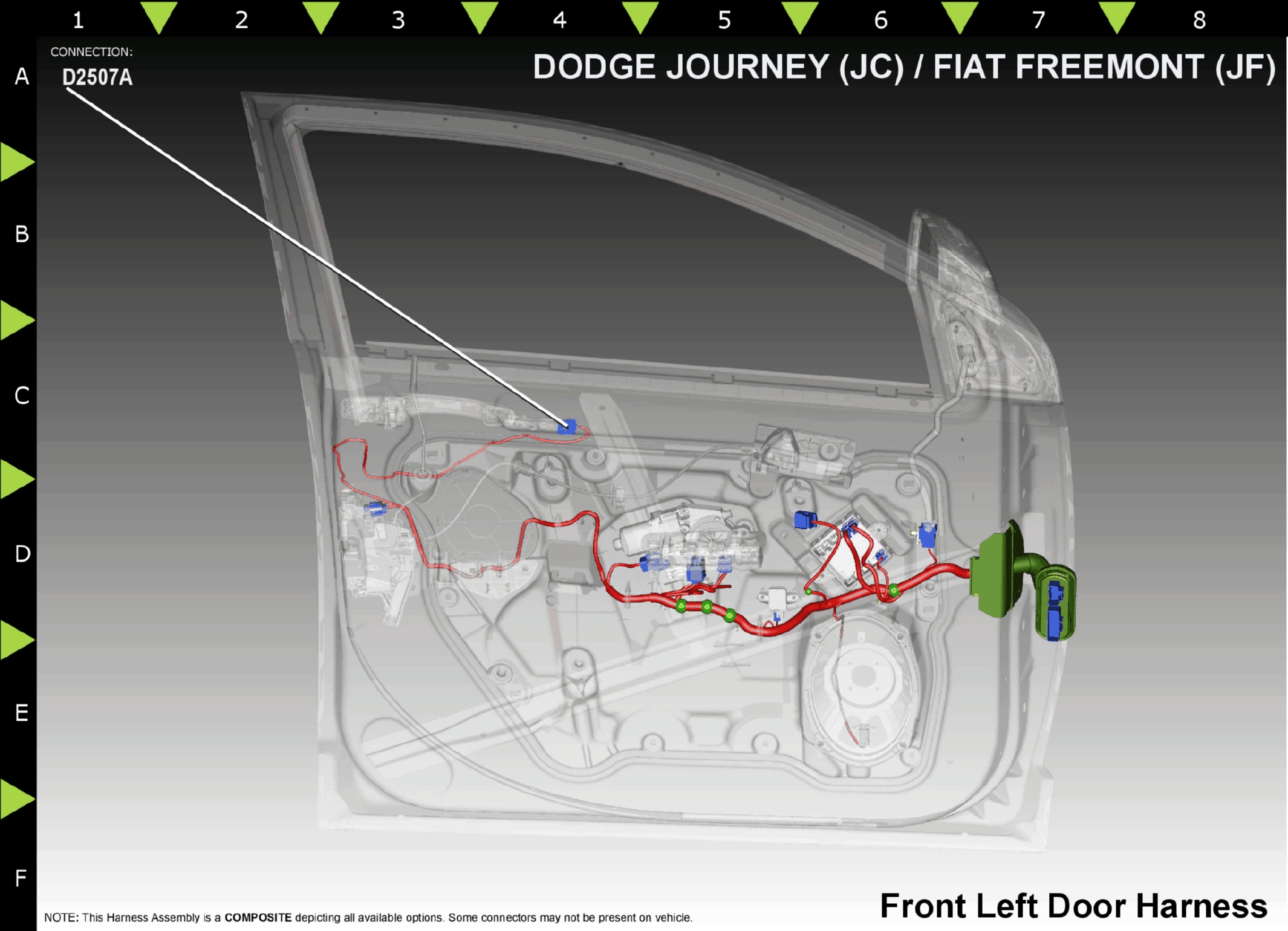

Fig 2: Switch-Door Handle-Exterior-Left Front Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P125

LG/YL

LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE

N/A

P124

LG/DB

LEFT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
