Switch-Dimmer (D7203A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 638393-5

Part Description: CONNNECTOR - PLUG ASSEMBLY

Connector No: D7203A

Option: Standard

Repair Kit Part Number: 68057283AA

Cavity Count: 10

Fig 1: Switch-Dimmer Connector End View

GCWD1006509

Courtesy of CHRYSLER

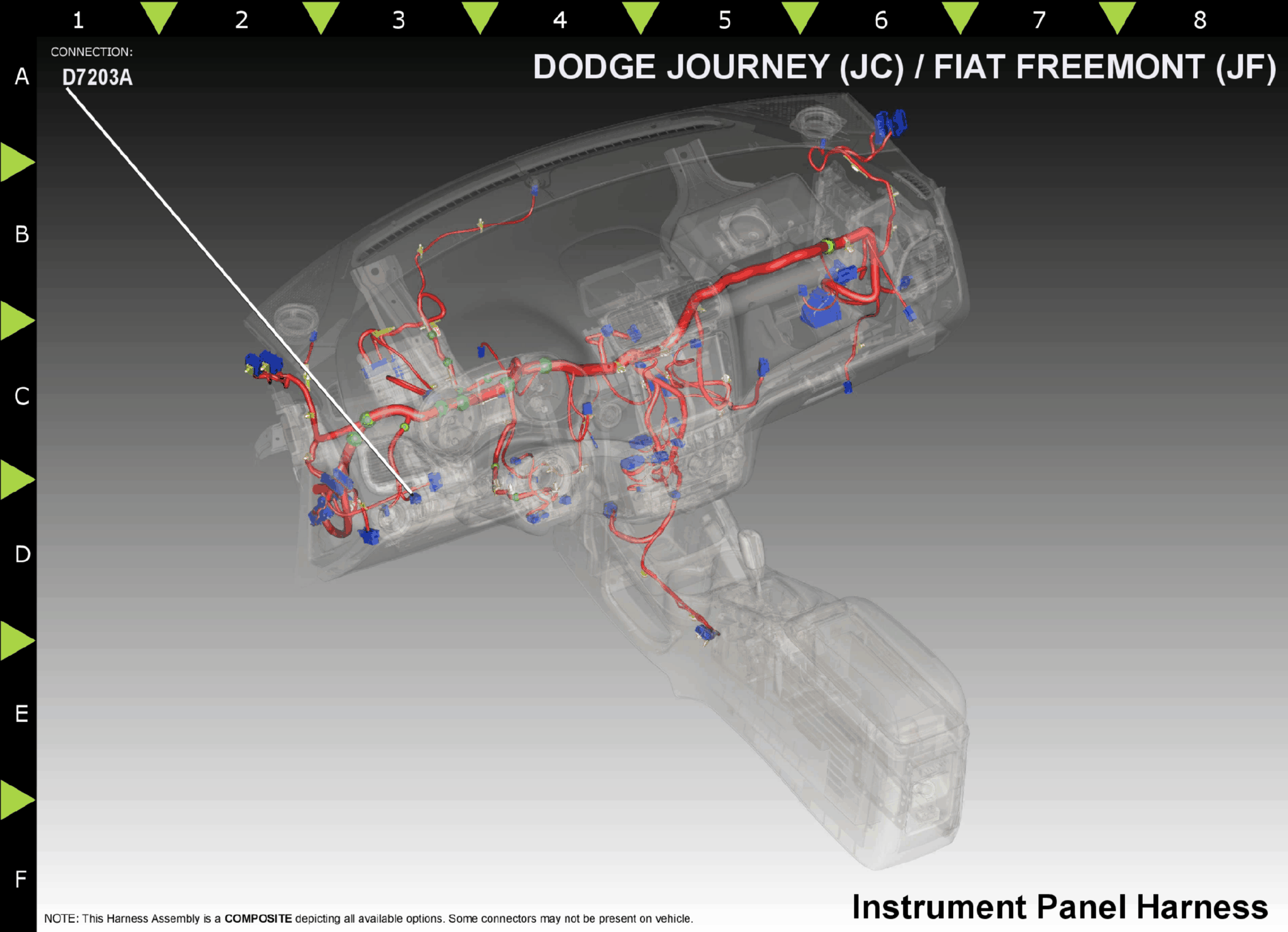

Fig 2: Switch-Dimmer Component Location

GCWD1188199

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

L900

WT/YL

22

HEADLAMP SWITCH MUX RETURN

N/A

2

Z926

BK

20

GROUND

N/A

3

E12

OR/GY

22

PANEL LAMPS DRIVER

N/A

4

E2

OR/BR

20

PANEL LAMPS DRIVER

N/A

5

E3

OR/YL

20

PANEL LAMPS DIMMER SWITCH MUX

N/A

⁽¹⁾	Pins not listed are not used for this connector
