Starter-B(+) (2.4L) (D6637B)

Harness-Family: Engine

Color:

Gender: MALE

Part Number: Yellow-1

Part Description: Not Available

Connector No: D6637B

Option: 2.4L

Repair Kit Part Number: Not Available

Cavity Count:

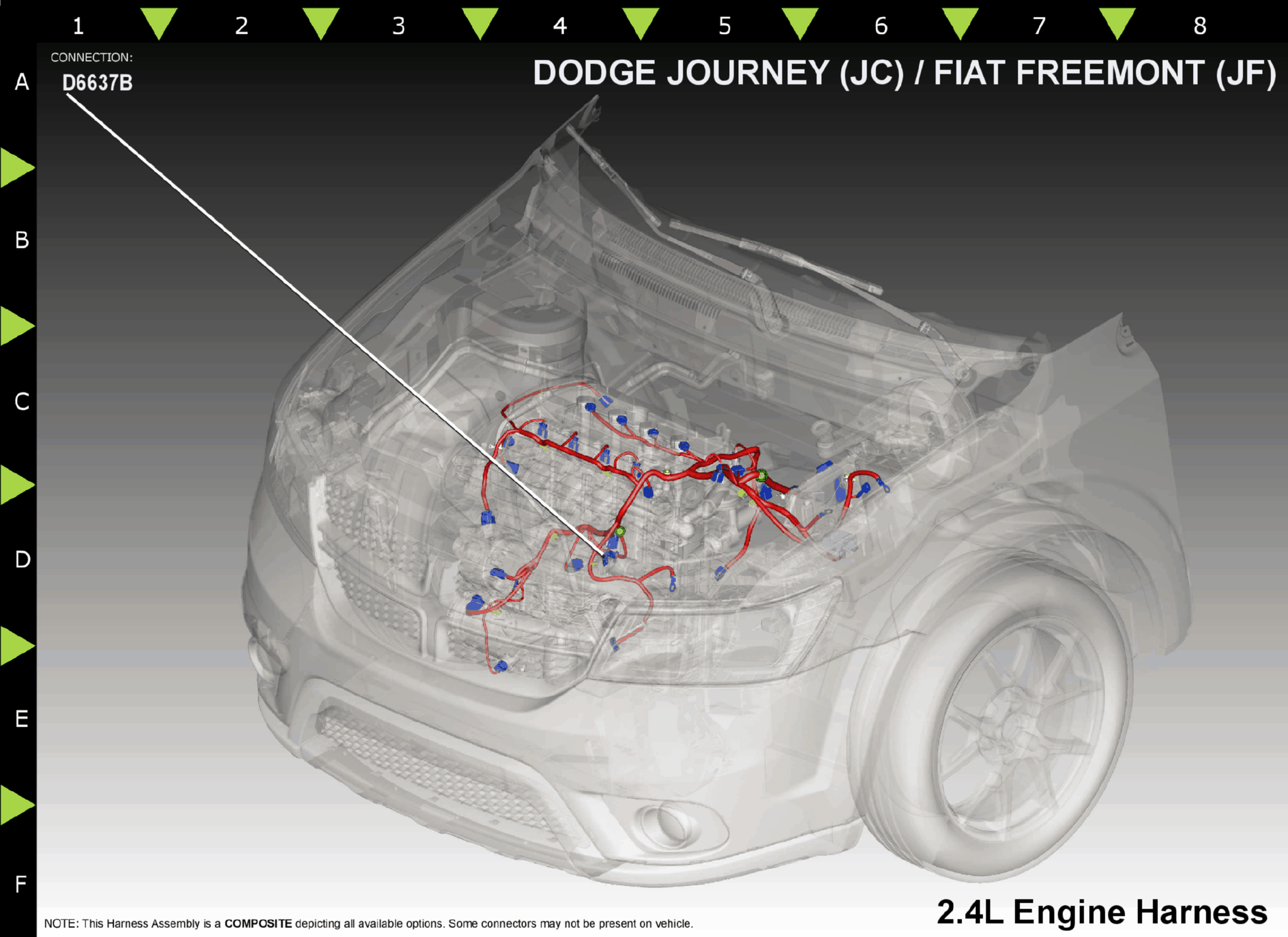

Fig 1: Starter-B(+) Component Location (2.4L)

GCWD1188155

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A11

BR/RD

4

B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
