Speaker-Subwoofer (D5920A)

Harness-Family: Body

Color: RED

Gender: FEMALE

Part Number: 15493520

Part Description: CONNECTOR 6F.045 UNSEALED

Connector No: D5920A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Speaker-Subwoofer Connector End View

GCWD1086071

Courtesy of CHRYSLER

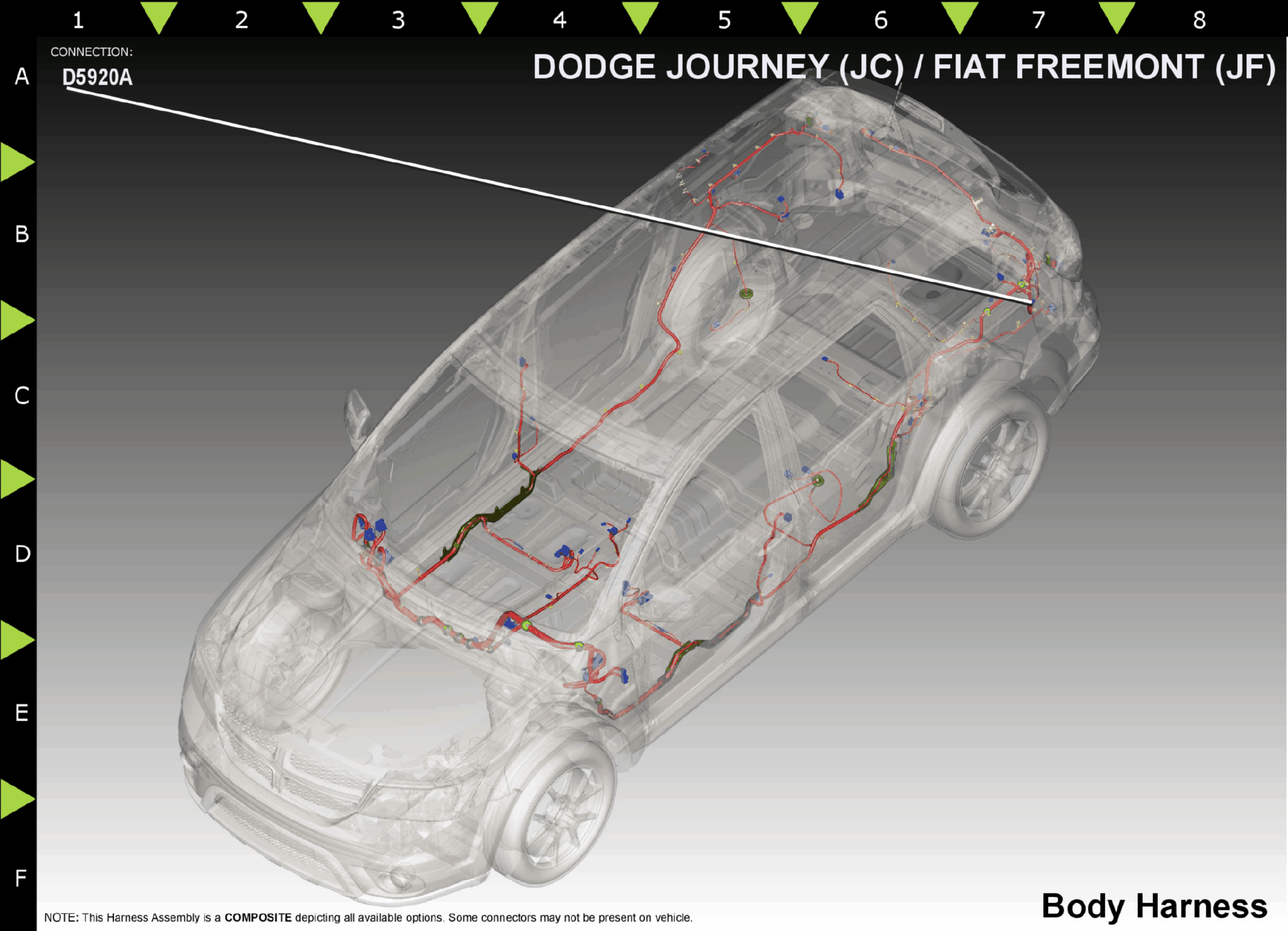

Fig 2: Speaker-Subwoofer Component Location

GCWD1188433

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X301

GY/WT

18

AMPLIFIED SUBWOOFER 2 (+)

N/A

3

X300

GY/BR

18

AMPLIFIED SUBWOOFER 1 (+)

N/A

4

X390

DG/BR

18

AMPLIFIED SUBWOOFER 1 (-)

N/A

6

X391

DG/WT

18

AMPLIFIED SUBWOOFER 2 (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
