Speaker-Right Front Door (D5909A)

Harness-Family: Door_Front_Left

Color: NATURAL

Gender: FEMALE

Part Number: 13579122

Part Description: 070 SERIES UNSEALED Female CONNECTOR

Connector No: D5909A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Speaker-Right Front Door Connector End View

Courtesy of CHRYSLER

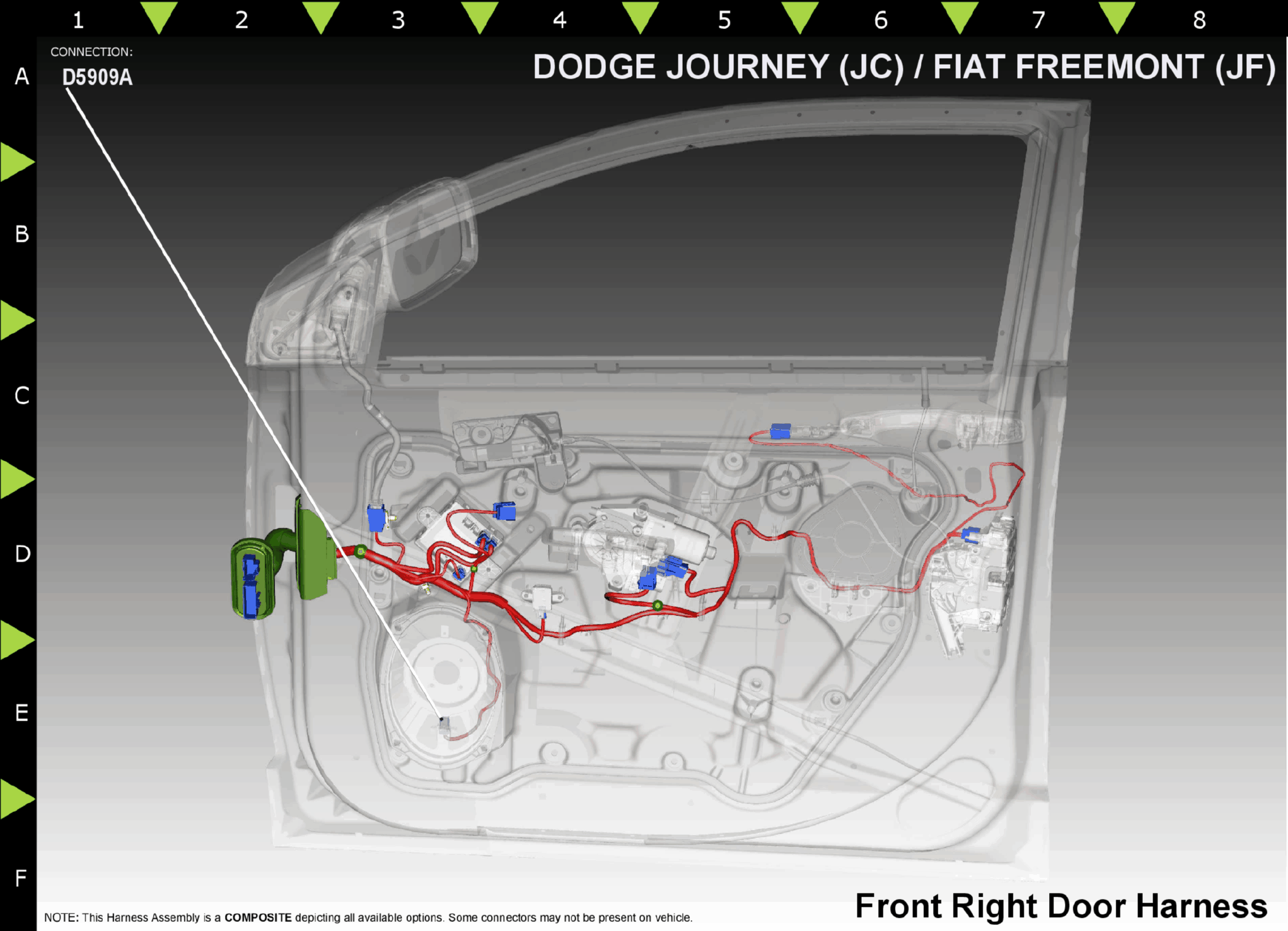

Fig 2: Speaker-Right Front Door Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X292

DG/YL

RIGHT FRONT SPEAKER (-)

N/A

X202

DG/VT

RIGHT FRONT SPEAKER (+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
