Speaker-Left Rear Door (D5910)

Harness-Family: Door_Left_Rear

Color: NATURAL

Gender: FEMALE

Part Number: 13579122

Part Description: 070 SERIES UNSEALED Female CONNECTOR

Connector No: D5910

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Speaker-Left Rear Door Connector End View

Courtesy of CHRYSLER

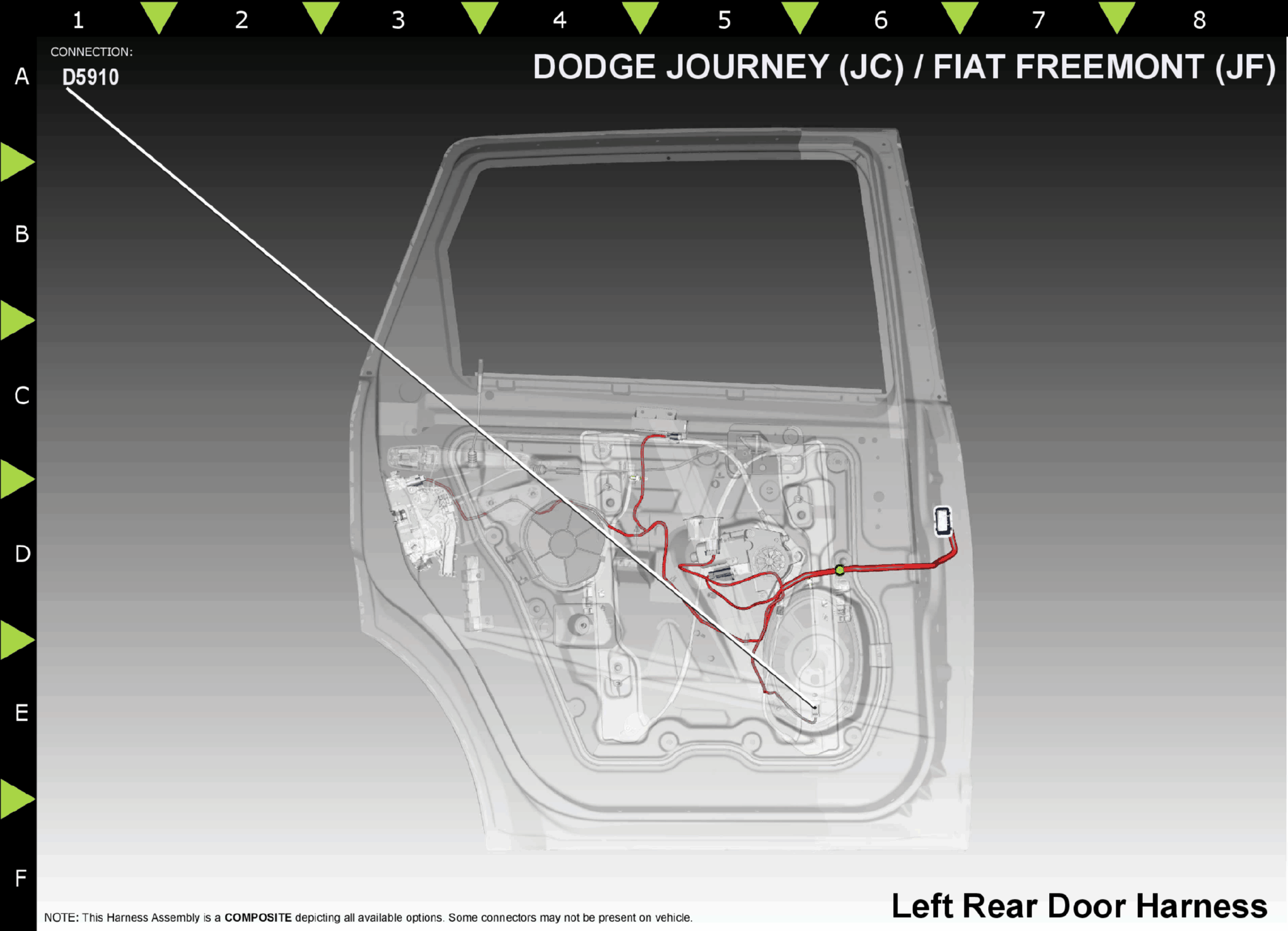

Fig 2: Speaker-Left Rear Door Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X295

DG/GY

LEFT REAR SPEAKER (-)

N/A

X205

DG/LG

LEFT REAR SPEAKER (+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
