Solenoid-Fuel Pressure (D17)

Harness-Family: Engine_Diesel

Color: BLACK

Gender: FEMALE

Part Number: 1-06044-97

Part Description: Not Available

Connector No: D17

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Solenoid-Fuel Pressure Connector End View

GCWD1079974

Courtesy of CHRYSLER

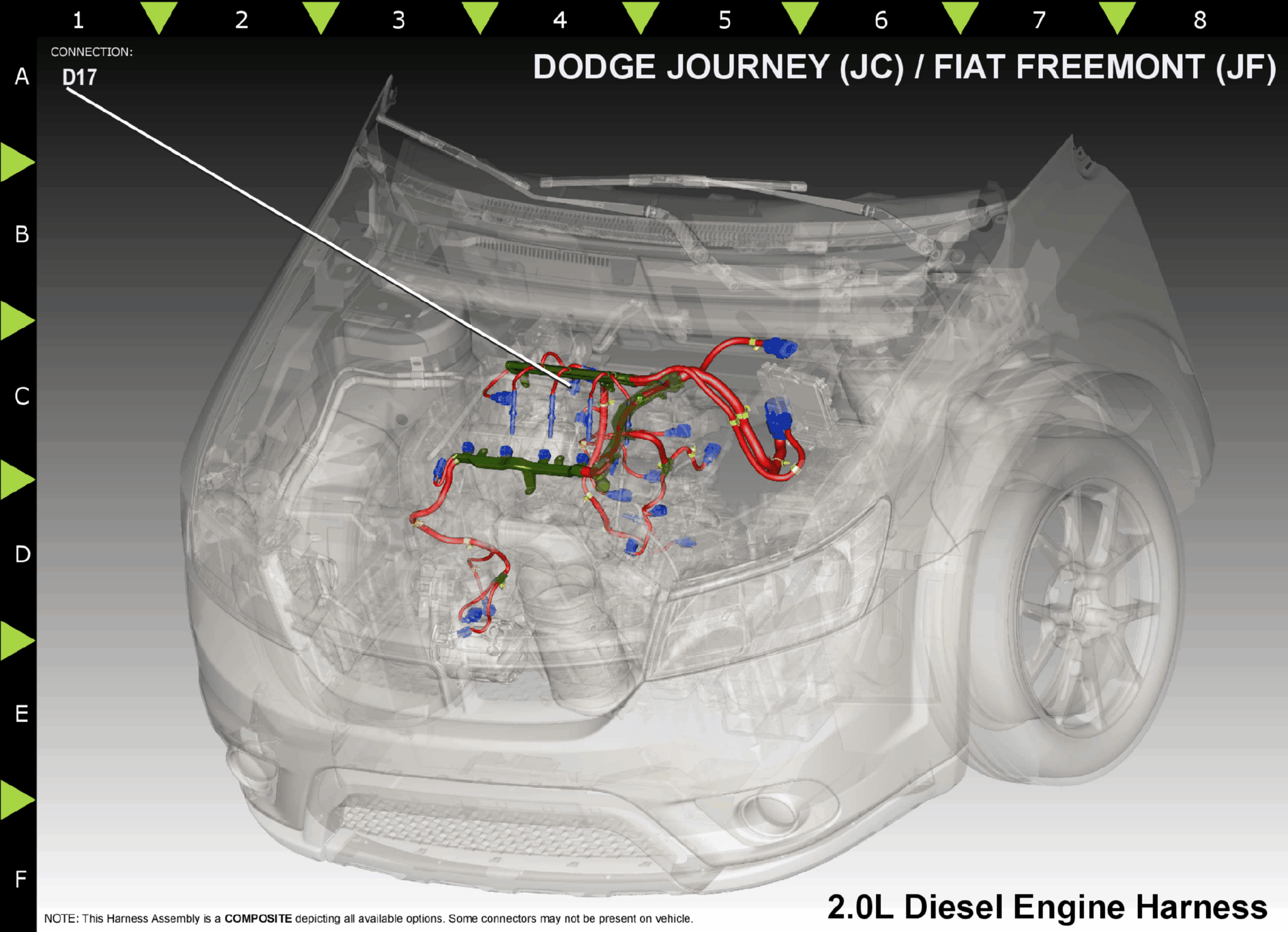

Fig 2: Solenoid-Fuel Pressure Component Location

GCWD1188461

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

K646

YL/BK

18

FUEL PRESSURE REGULATOR CONTROL

N/A

2

Z909

OR/BK

18

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
