Solenoid-Camshaft 1/2 Position (3.6L) (D63A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: F495100

Part Description: Not Available

Connector No: D63A

Option: 3.6L

Repair Kit Part Number: 68149290AA

Cavity Count: 2

Fig 1: Solenoid-Camshaft 1/2 Position Connector End View (3.6L)

Courtesy of CHRYSLER

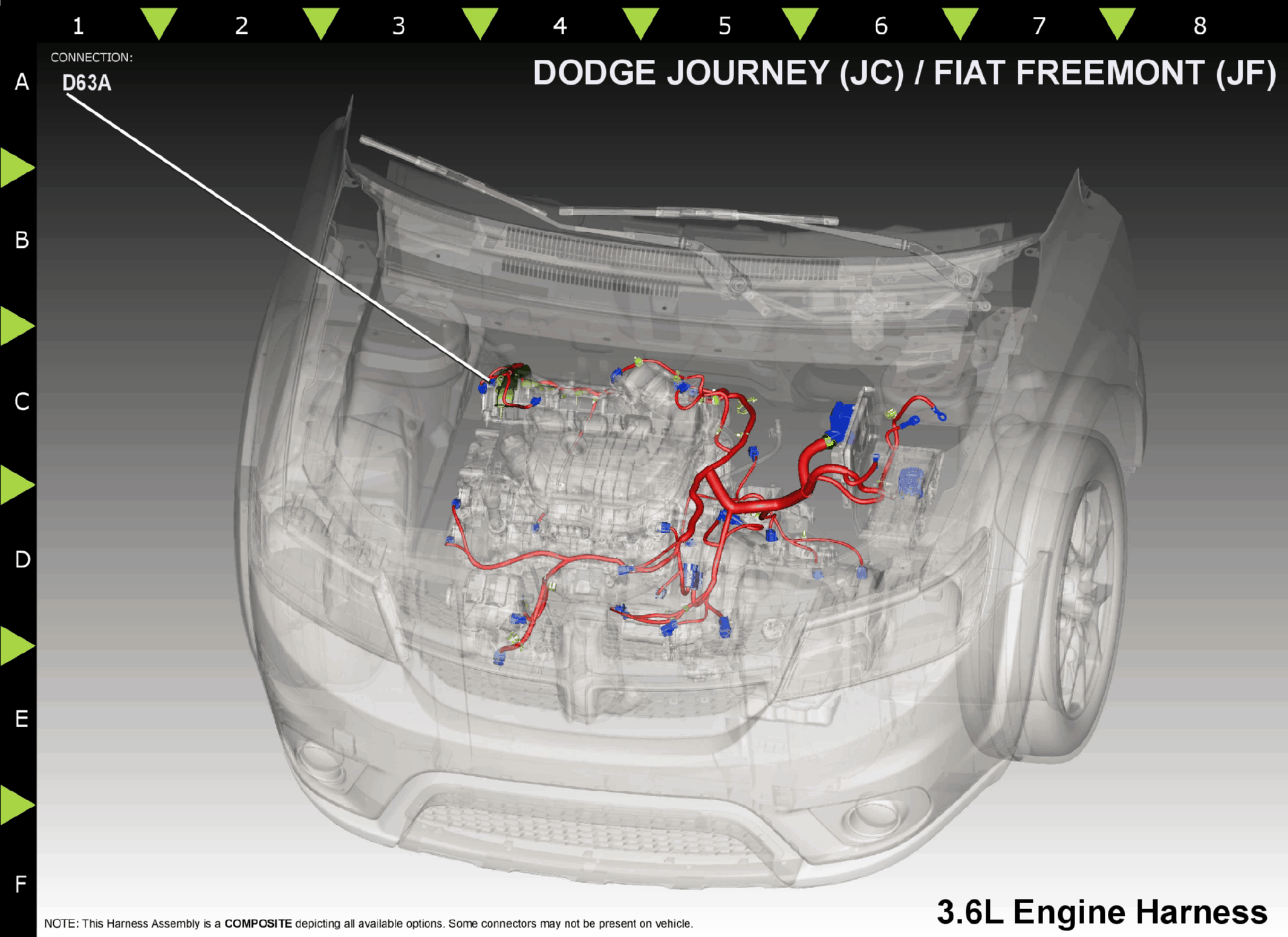

Fig 2: Solenoid-Camshaft 1/2 Position Component Location (3.6L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K276

DB/WT

.50

VVT EXHAUST CONTROL

N/A

Z901

.75

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
