Solenoid-Camshaft 1/1 Position (2.4L) (D64A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 7223-1324-30

Part Description: Not Available

Connector No: D64A

Option: 2.4L

Repair Kit Part Number: 68030134AA

Cavity Count:

Fig 1: Solenoid-Camshaft 1/1 Position Connector End View (2.4L)

Courtesy of CHRYSLER

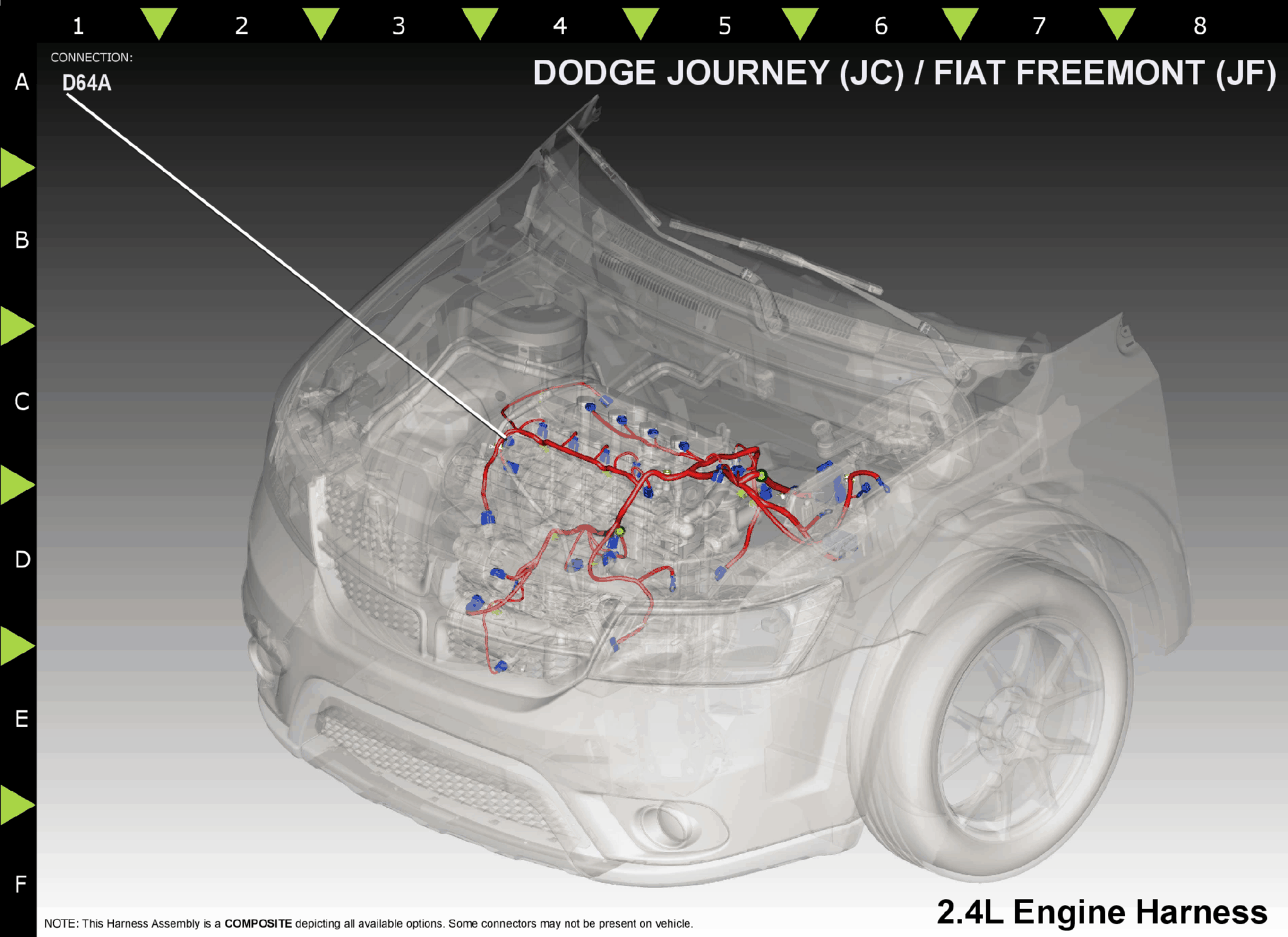

Fig 2: Solenoid-Camshaft 1/1 Position Component Location (2.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z901

GROUND

N/A

K76

BR/WT

VVT INTAKE CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
