Solenoid-A/C Compressor (2.4L) (D76)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 6189-0239

Part Description: 2.3 SEALED 2P (F) CONNECTOR

Connector No: D76

Option: 2.4L

Repair Kit Part Number: 68030133AA

Cavity Count: 2

Fig 1: Solenoid-A/C Compressor Connector End View (2.4L)

Courtesy of CHRYSLER

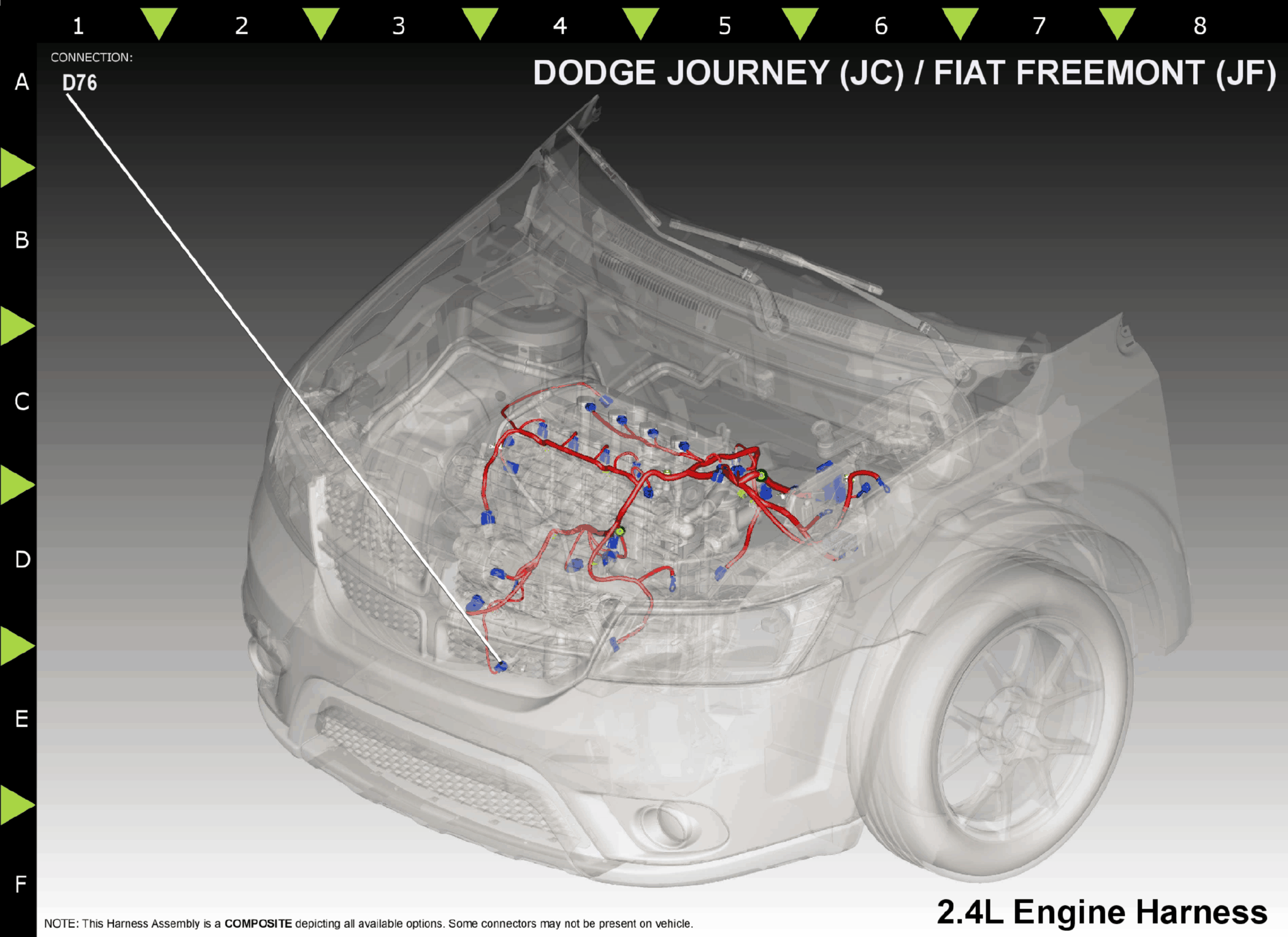

Fig 2: Solenoid-A/C Compressor Component Location (2.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C27

LB/WT

A/C COMPRESSOR CONTROL

N/A

Z901

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
