Sensor-Wheel Speed-Abs-Left Rear (D1574A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13627749

Part Description: ASM CONN 2 F GT FBT 150 BLK SLD

Connector No: D1574A

Option: Standard

Repair Kit Part Number: 68052575AA

Cavity Count: 2

Fig 1: Sensor-Wheel Speed-ABS-Left Rear Connector End View

Courtesy of CHRYSLER

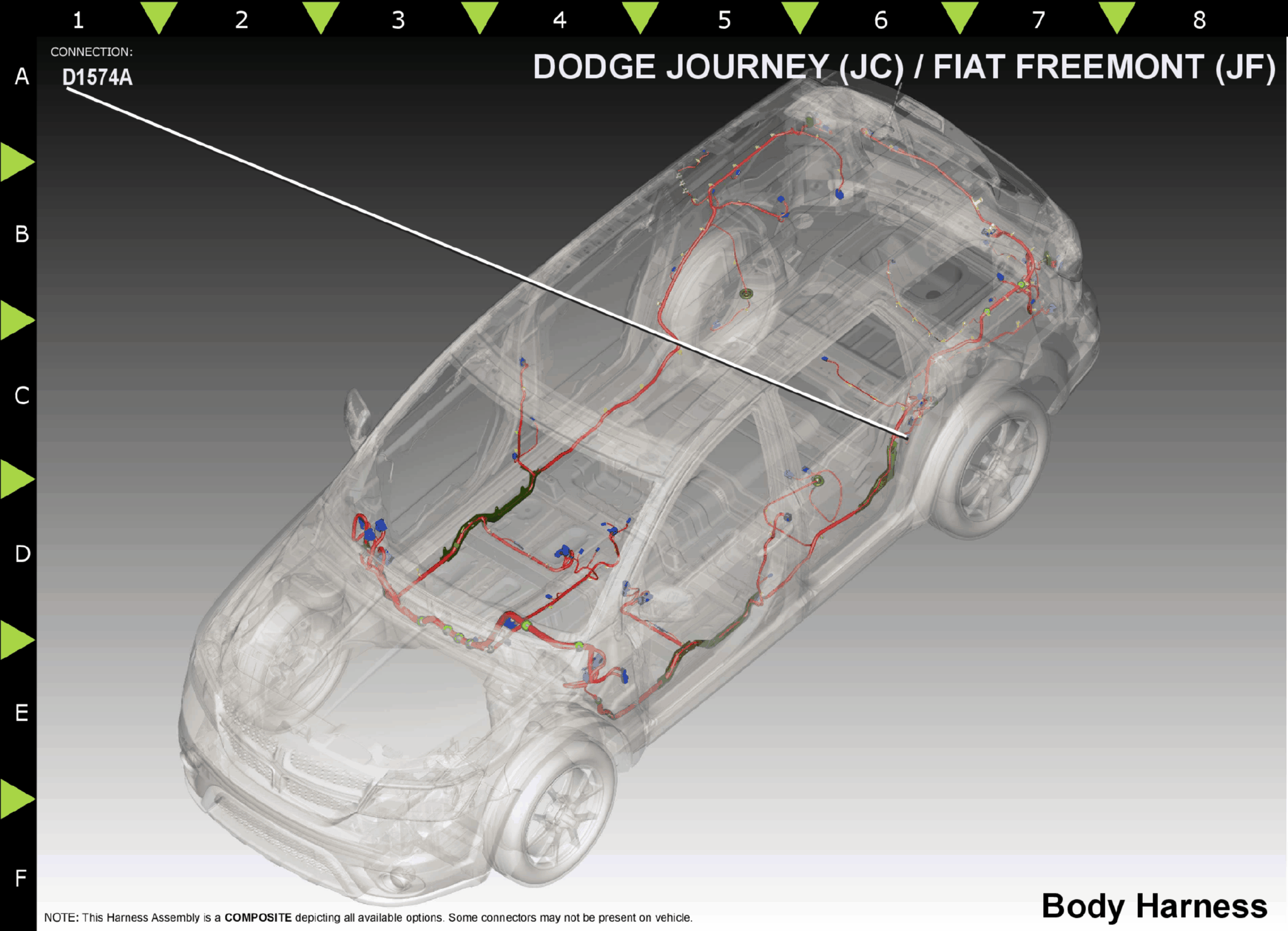

Fig 2: Sensor-Wheel Speed-ABS-Left Rear Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

DG/GY

LEFT REAR WHEEL SPEED SENSOR (+)

N/A

DG/YL

LEFT REAR WHEEL SPEED SENSOR (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
