Sensor-Vacuum Pressure (LHD) (D1663A)

Harness-Family: HDLP_Dash

Color: DARK GRAY

Gender: FEMALE

Part Number: 7283-5880-10

Part Description: 1.5 MM YESC SUB ASSEMBLY WITH CPA

Connector No: D1663A

Option: LHD

Repair Kit Part Number: 68040505AA

Cavity Count: 3

Fig 1: Sensor-Vacuum Pressure Connector End View (LHD)

Courtesy of CHRYSLER

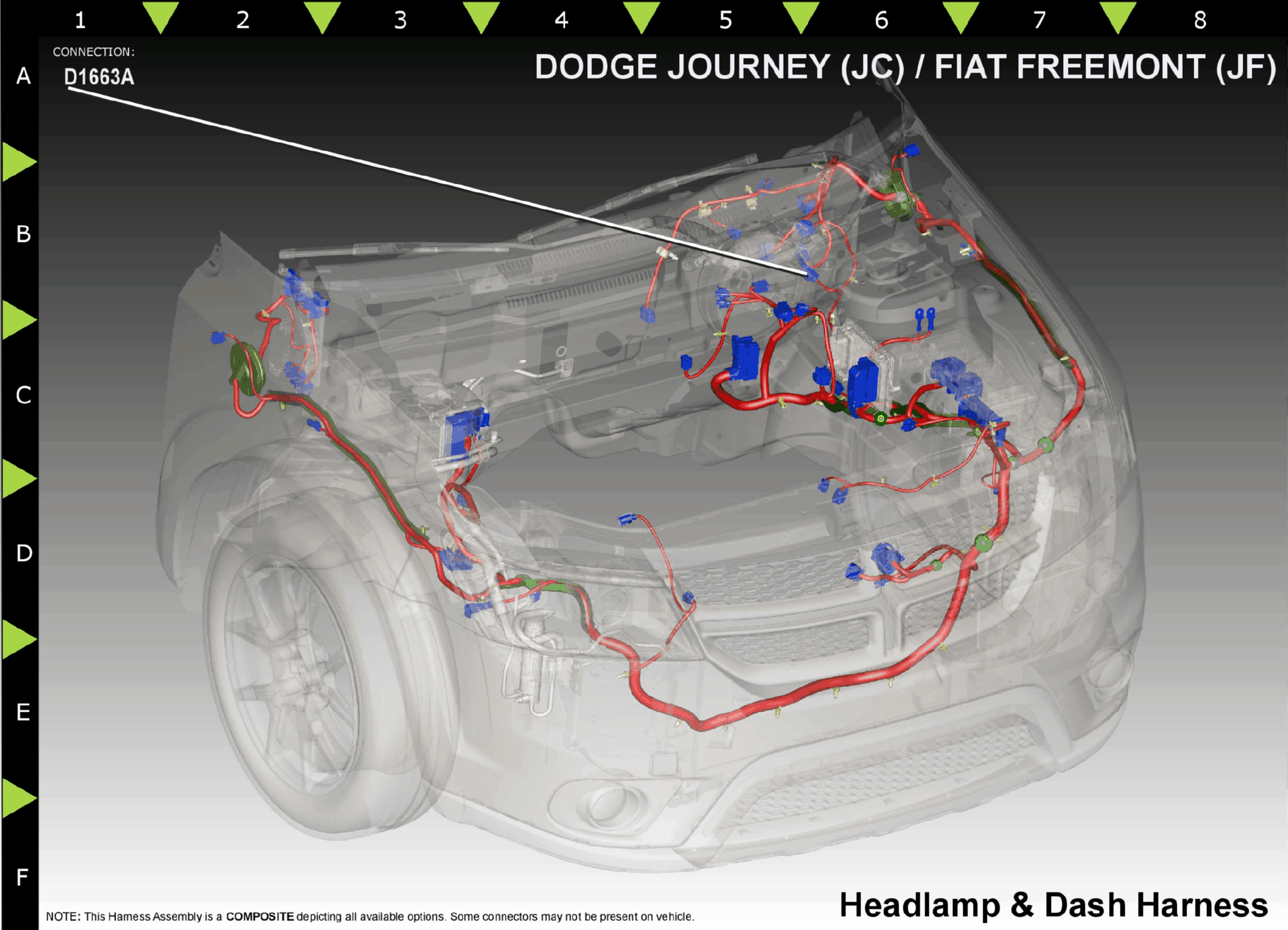

Fig 2: Sensor-Vacuum Pressure Component Location (LHD)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

B32

DG/OR

VACUUM PRESSURE SENSOR SIGNAL

N/A

B33

DG/TN

VACUUM PRESSURE SENSOR RETURN

N/A

B31

DG/YL

VACUUM PRESSURE SENSOR SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
