Sensor-Transmission Range (D6646A)

Harness-Family: Transmission

Color: LIGHT GREEN

Gender: FEMALE

Part Number: 54201012

Part Description: ASSY 10-WAY

Connector No: D6646A

Option: Standard

Repair Kit Part Number: 05017116AA

Cavity Count: 10

Fig 1: Sensor-Transmission Range Connector End View

Courtesy of CHRYSLER

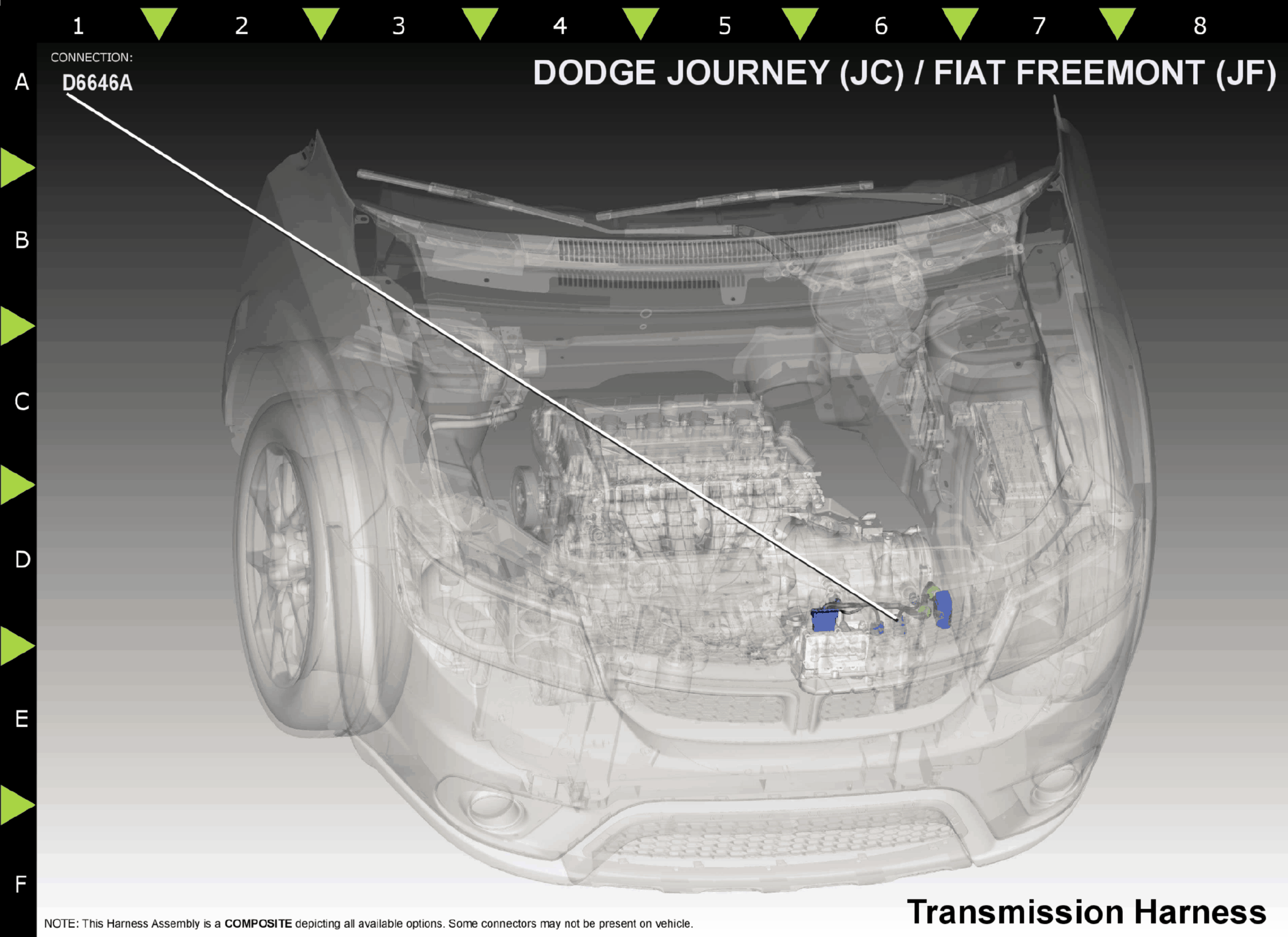

Fig 2: Sensor-Transmission Range Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K900

DB/DG

SENSOR GROUND

N/A

T54

DG/OR

TRANSMISSION TEMPERATURE SIGNAL

N/A

DG/LB

TRS T1 SIGNAL

N/A

DG/DB

TRS T3 SIGNAL

N/A

T42

DG/YL

TRS T42 SIGNAL

N/A

T41

YL/DB

TRS T41 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
