Sensor-Sun (D1561A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 13543929

Part Description: MTS 0.64 UNSEALED Female CONNECTOR

Connector No: D1561A

Option: Standard

Repair Kit Part Number: 68080566AA

Cavity Count: 4

Fig 1: Sensor-Sun Connector End View

Courtesy of CHRYSLER

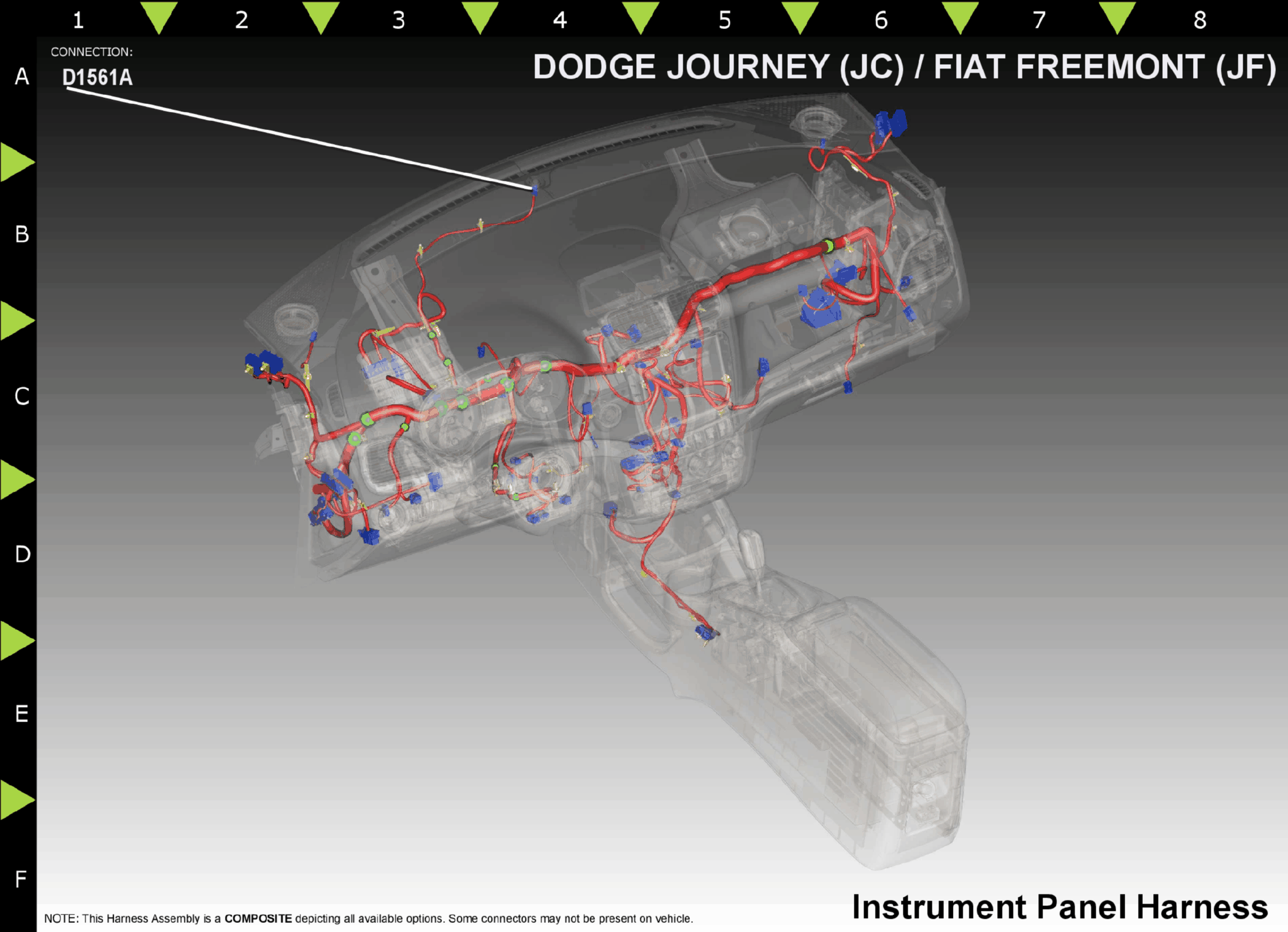

Fig 2: Sensor-Sun Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L24

WT/VT

AUTO HEADLAMPS SIGNAL

N/A

G39

VT/LB

SUN SENSOR SIGNAL 1

N/A

G139

VT/OR

SUN SENSOR SIGNAL 2

N/A

G939

VT/DB

SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
