Sensor-Side Impact Pressure-Right (LHD) (D1547A)

Harness-Family: Door_Front_Right

Color: NATURAL

Gender: FEMALE

Part Number: 13543915

Part Description: RECEPTACLE HOUSING 3 WAY FOR MQS.63

Connector No: D1547A

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Sensor-Side Impact Pressure-Right Connector End View (LHD)

Courtesy of CHRYSLER

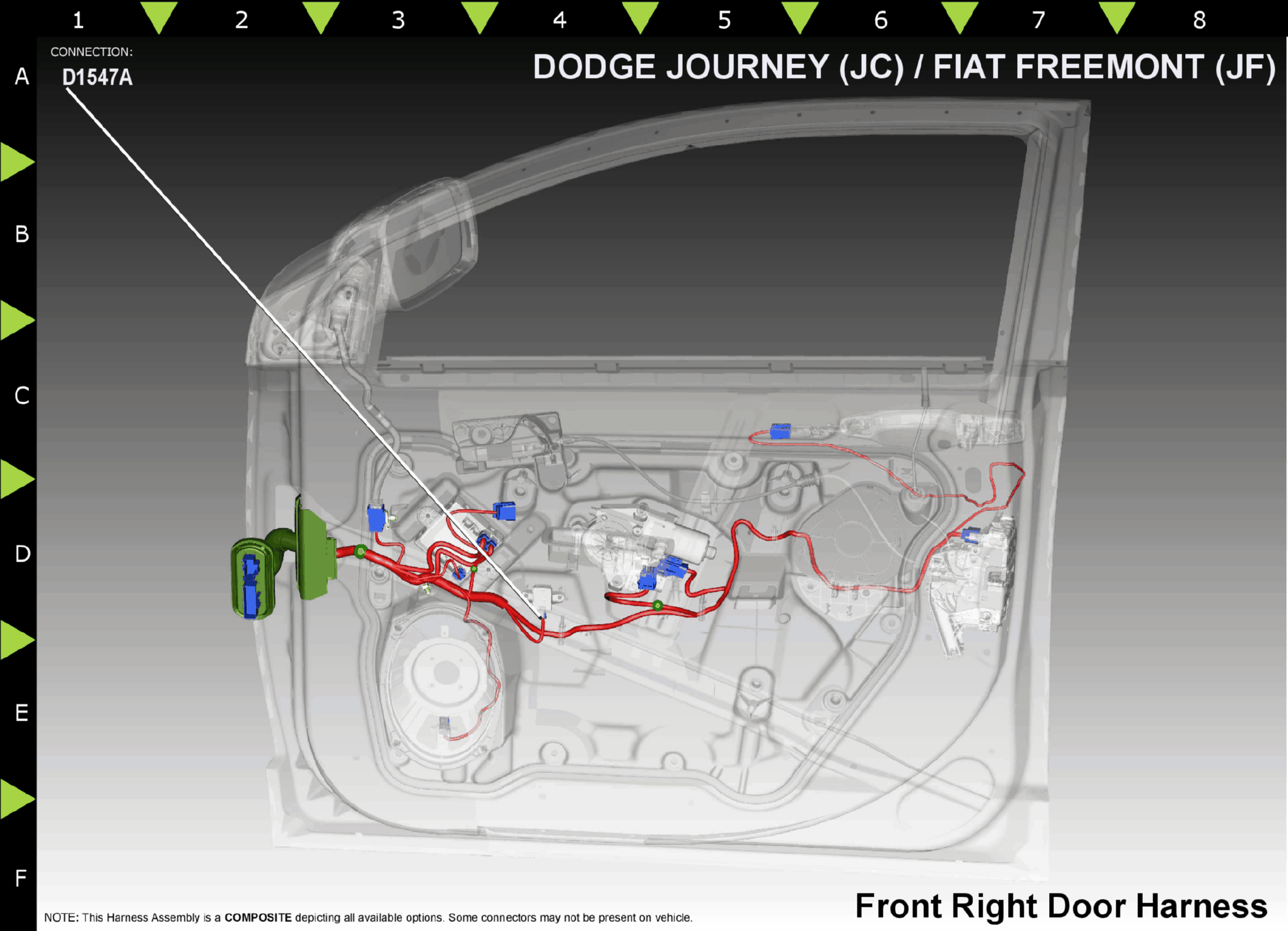

Fig 2: Sensor-Side Impact Pressure-Right Component Location (LHD)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R140

RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL

N/A

R160

RIGHT SIDE IMPACT PRESSURE SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
