Sensor-Seat Track Position-Passenger (D1601)

Harness-Family: Seat_Pass

Color: GRAY

Gender: FEMALE

Part Number: 1438426-3

Part Description: CONNECTOR ASSEMBLY

Connector No: D1601

Option: Standard

Repair Kit Part Number: 68057307AA

Cavity Count: 2

Fig 1: Sensor-Seat Track Position-Passenger Connector End View

Courtesy of CHRYSLER

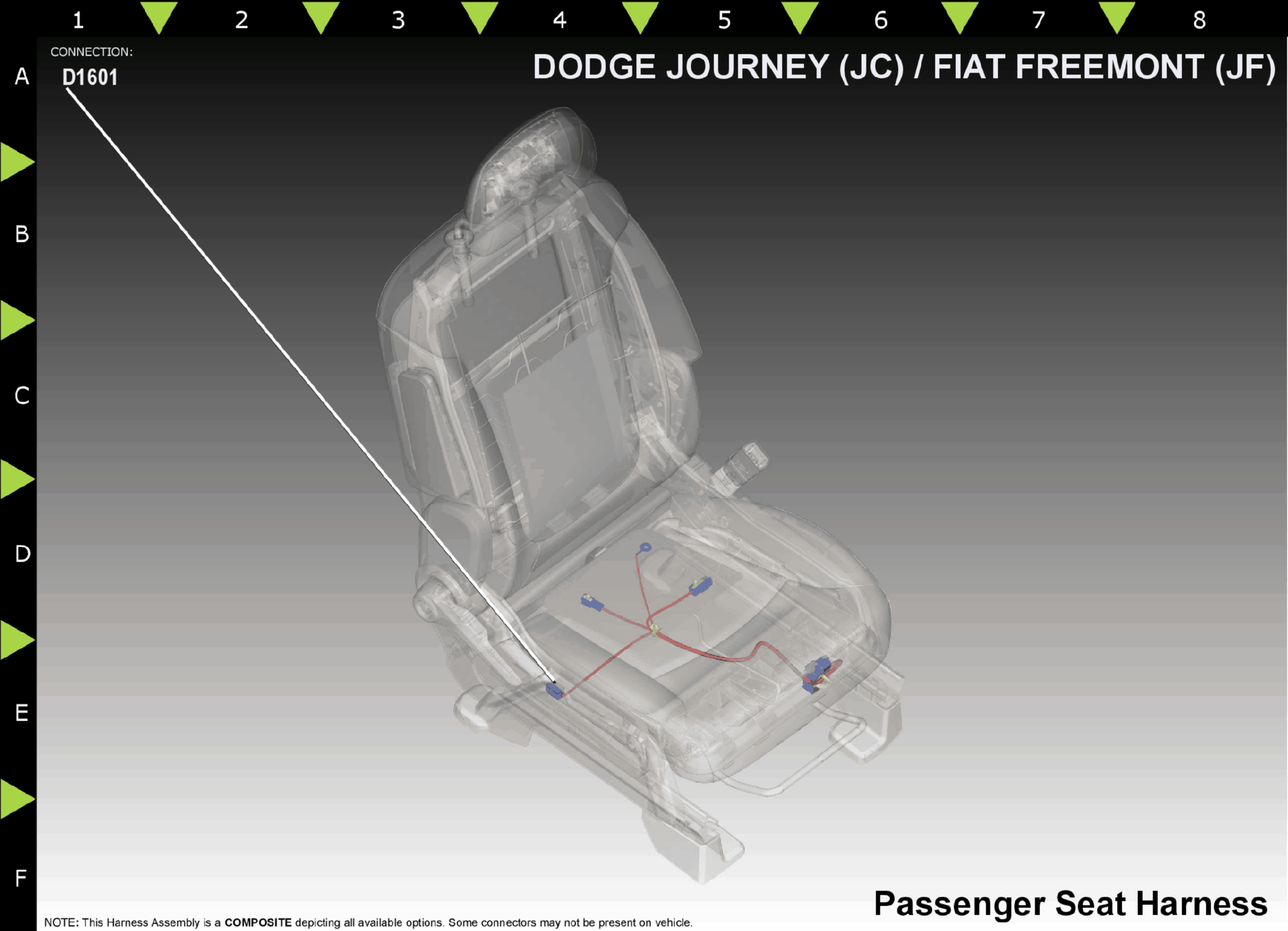

Fig 2: Sensor-Seat Track Position-Passenger Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R262

WT/LB

PASSENGER SEAT POSITION SENSOR DATA

N/A

R264

VT/LB

PASSENGER SEAT POSITION SENSOR VOLTAGE

N/A

⁽¹⁾	Pins not listed are not used for this connector
