Sensor-Seat Track Position-Driver (D1581)

Harness-Family: Seat_Driver

Color: GRAY

Gender: FEMALE

Part Number: 1438426-3

Part Description: CONNECTOR ASSEMBLY

Connector No: D1581

Option: Standard

Repair Kit Part Number: 68057307AA

Cavity Count: 2

Fig 1: Sensor-Seat Track Position-Driver Connector End View

Courtesy of CHRYSLER

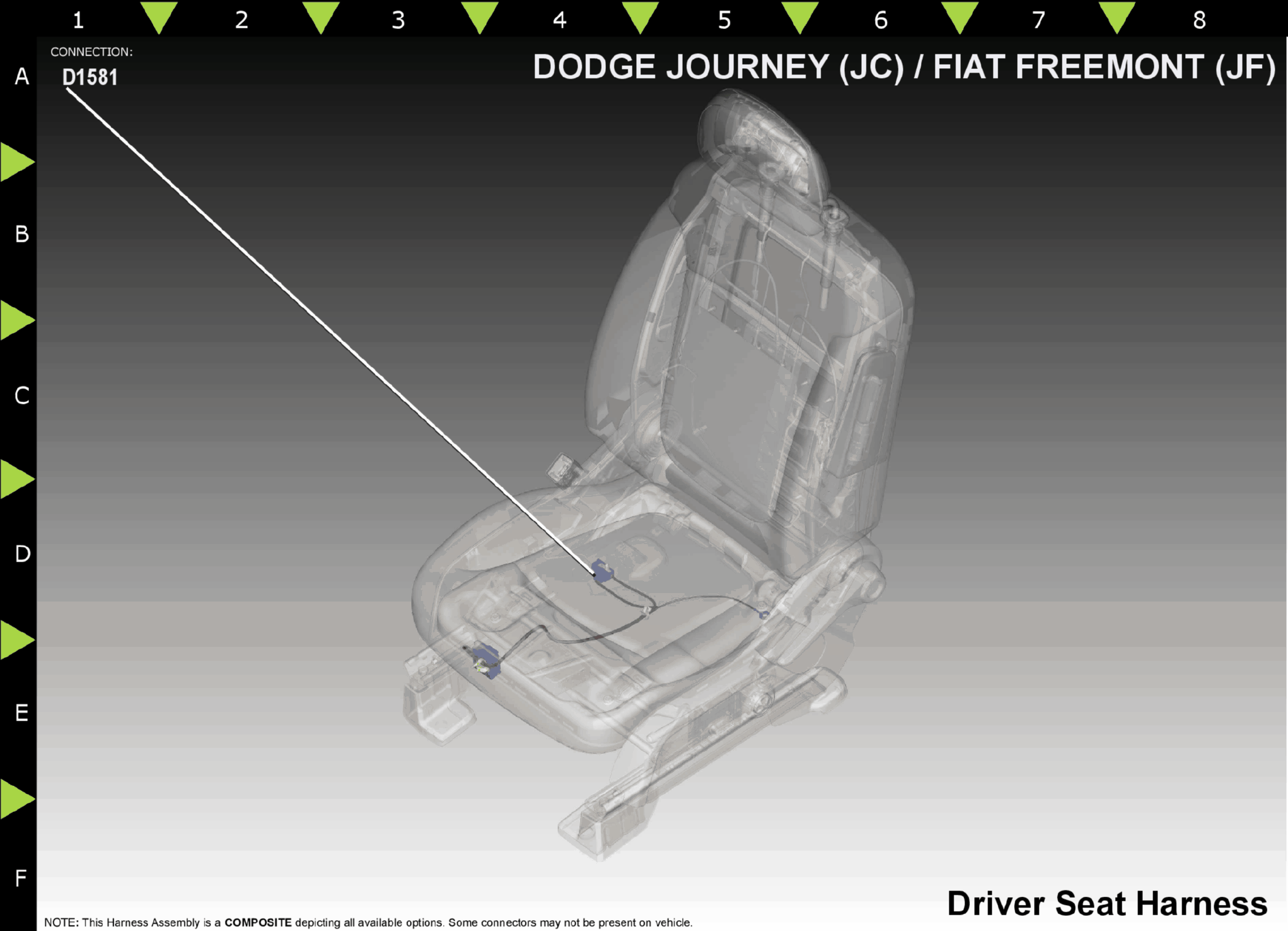

Fig 2: Sensor-Seat Track Position-Driver Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R261

LB/WT

DRIVER SEAT POSITION SENSOR DATA

N/A

R263

LB/VT

DRIVER SEAT POSITION SENSOR VOLTAGE

N/A

⁽¹⁾	Pins not listed are not used for this connector
