Sensor-Pedestrian Impact-Left (D2611A)

Harness-Family: FEM_Jumper

Color: NATURAL

Gender: FEMALE

Part Number: 7283-8794-70

Part Description: A/B 040-III CONNECTOR SUB ASSEMBLY

Connector No: D2611A

Option: Standard

Repair Kit Part Number: 68065009AA

Cavity Count: 2

Fig 1: Sensor-Pedestrian Impact-Left Connector End View

Courtesy of CHRYSLER

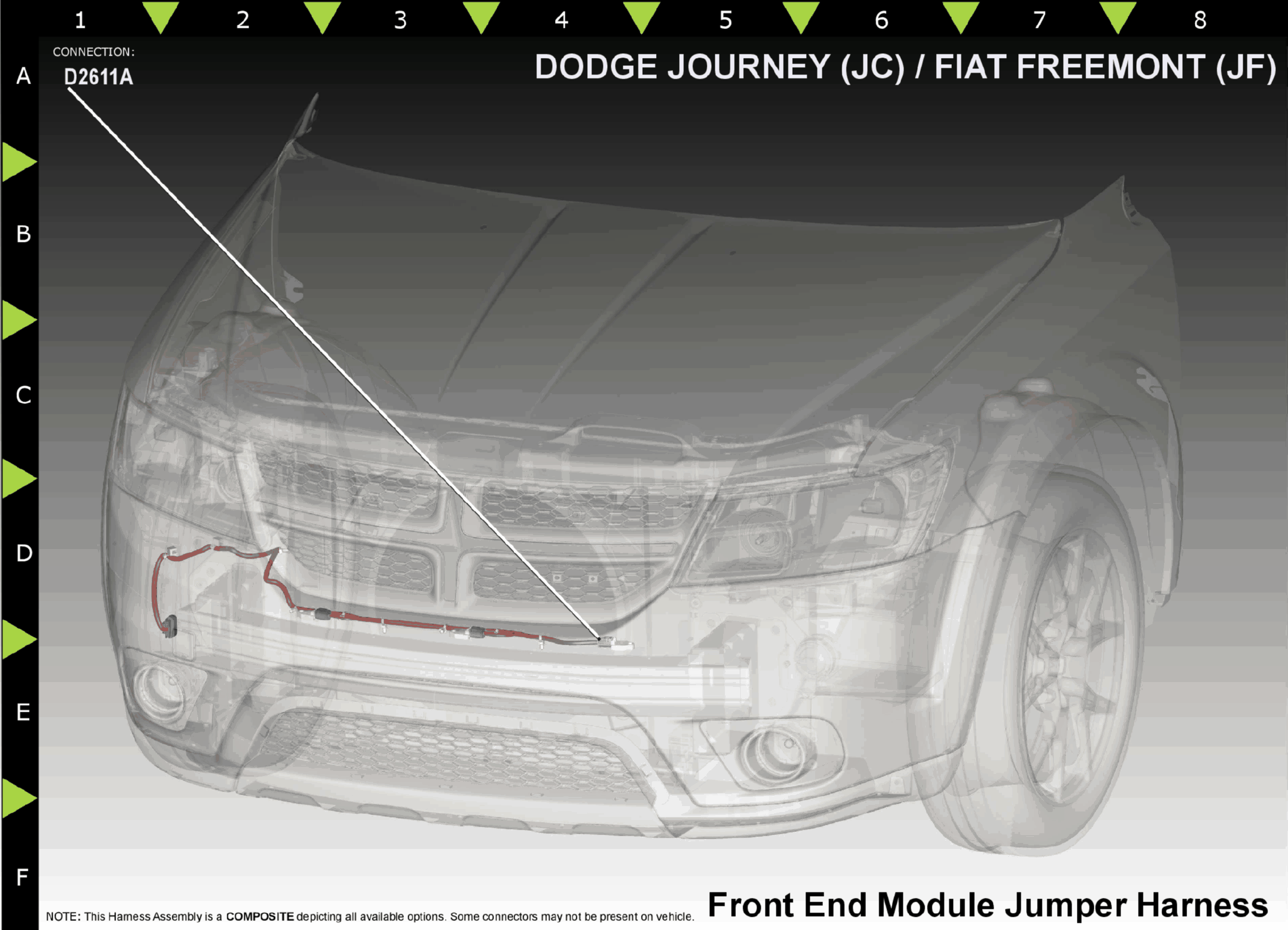

Fig 2: Sensor-Pedestrian Impact-Left Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R171

LG/OR

LEFT PEDESTRIAN IMPACT SENSOR GROUND

N/A

R170

LG/BR

LEFT PEDESTRIAN IMPACT SENSOR SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
