Sensor-Park Assist 11 (D2410A)

Harness-Family: Fascia_Rear

Color: BLACK

Gender: FEMALE

Part Number: 31403-3700

Part Description: USCAR CONNECTOR -SINGLE ROW ASSY W/O CPA

Connector No: D2410A

Option: Standard

Repair Kit Part Number: 68080531AA

Cavity Count: 3

Fig 1: Sensor-Park Assist 11 Connector End View

Courtesy of CHRYSLER

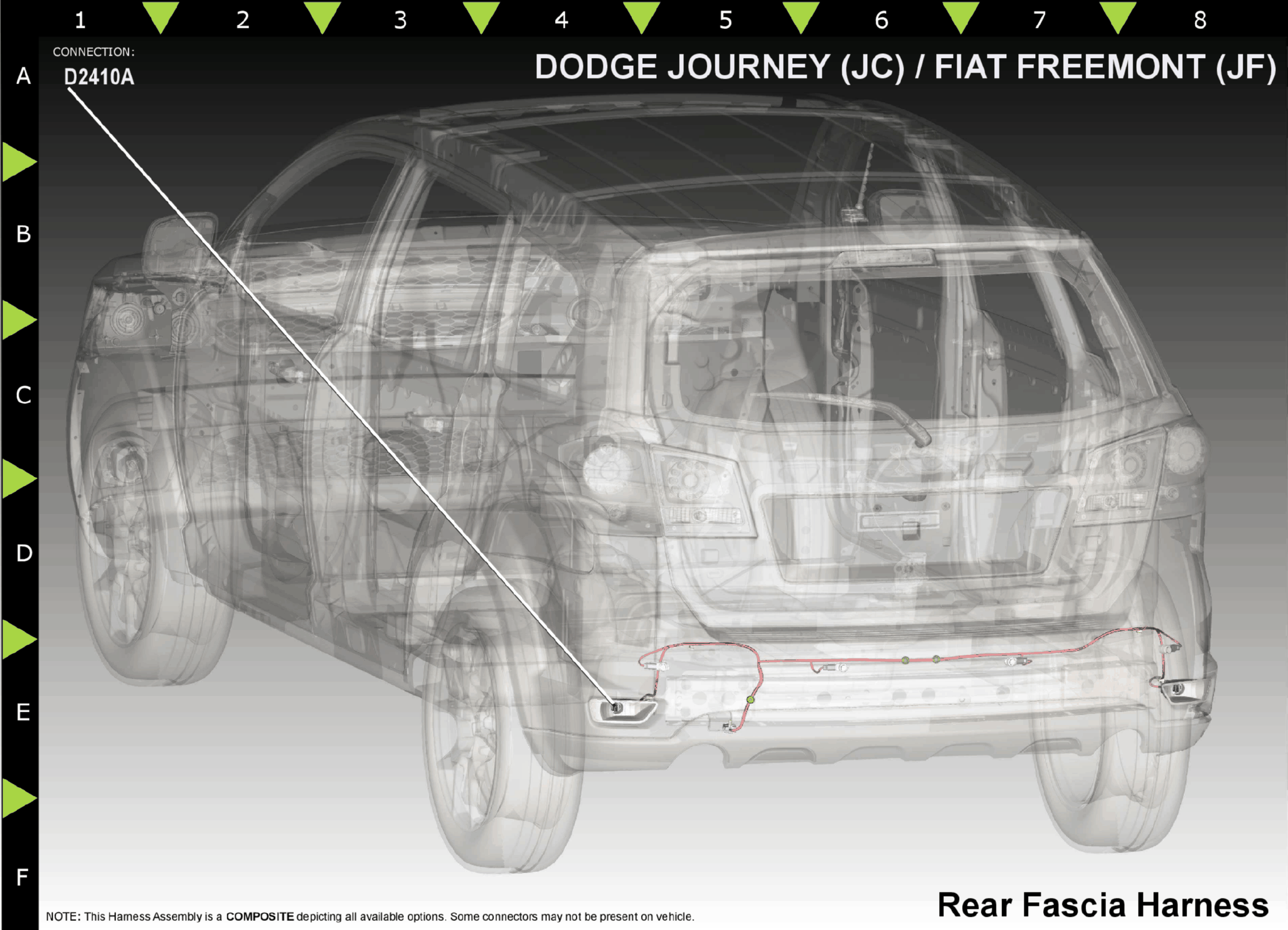

Fig 2: Sensor-Park Assist 11 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X700

GY/OR

REAR PARK ASSIST SENSOR SUPPLY

N/A

X750

GY/LB

REAR PARK ASSIST SENSOR GROUND

N/A

D710

PARK ASSIST SIGNAL 11

N/A

⁽¹⁾	Pins not listed are not used for this connector
