Sensor-Oxygen 2/2 (D1542A)

Harness-Family: Engine

Color: NATURAL

Gender: MALE

Part Number: 184408-1

Part Description: SEALED SENSOR CONNECTOR - KEY G-C3)

Connector No: D1542A

Option: Standard

Repair Kit Part Number: 05161931AA

Cavity Count: 4

Fig 1: Sensor-Oxygen 2/2 Connector End View

Courtesy of CHRYSLER

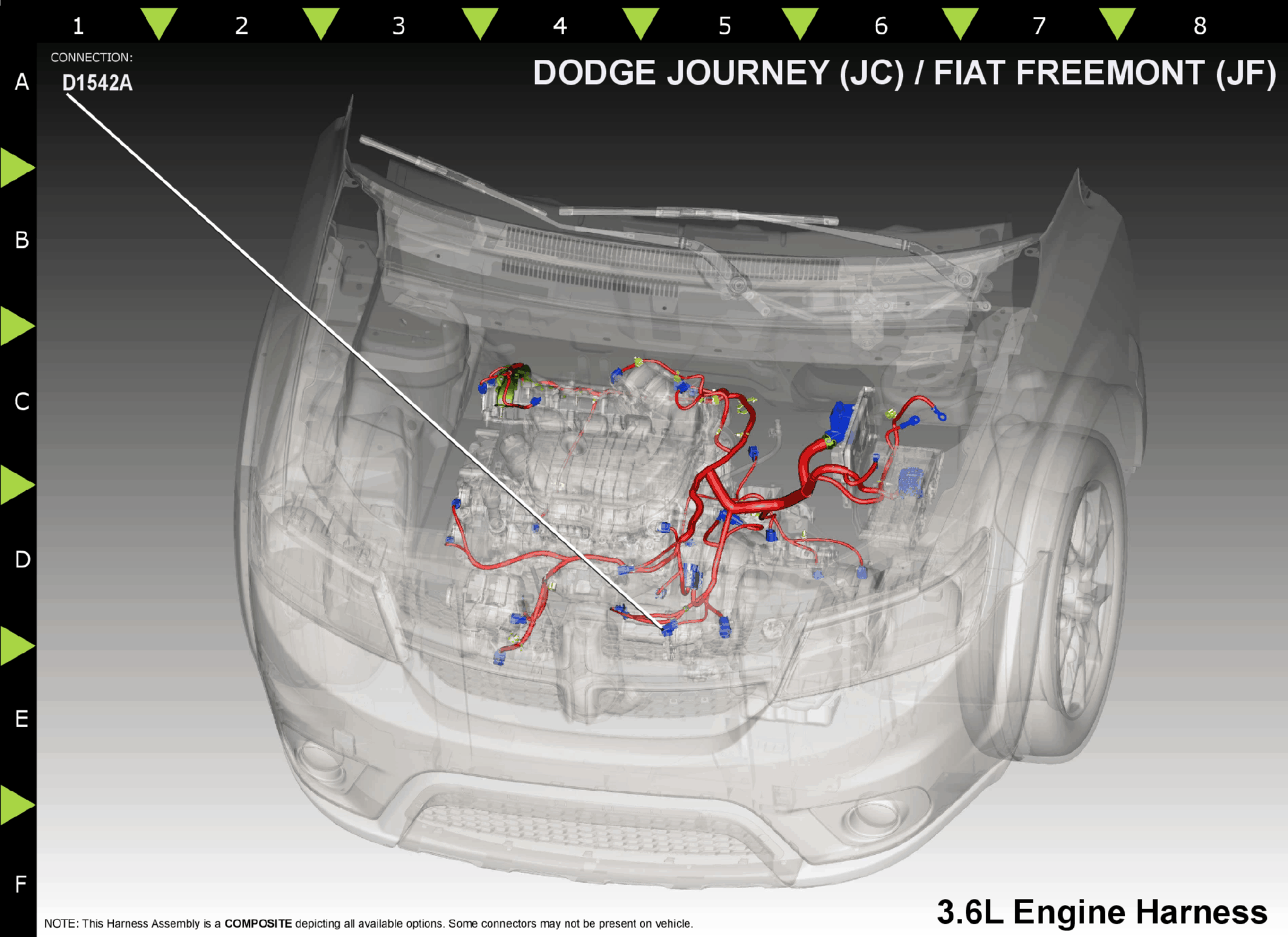

Fig 2: Sensor-Oxygen 2/2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K399

BR/GY

O2 2/2 HEATER CONTROL

N/A

Z902

GROUND

N/A

K904

DB/DG

.80

O2 RETURN (DOWNSTREAM)

N/A

K243

.80

O2 2/2 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
