Sensor-Oxygen 1/2 (D1540A)

Harness-Family: Engine

Color: BLACK

Gender: MALE

Part Number: 184346-1

Part Description: 2 X 2 CAP ASSEMBLY, KEY A-C3

Connector No: D1540A

Option: Standard

Repair Kit Part Number: 05161922AA

Cavity Count: 4

Fig 1: Sensor-Oxygen 1/2 Connector End View

GCWD1016840

Courtesy of CHRYSLER

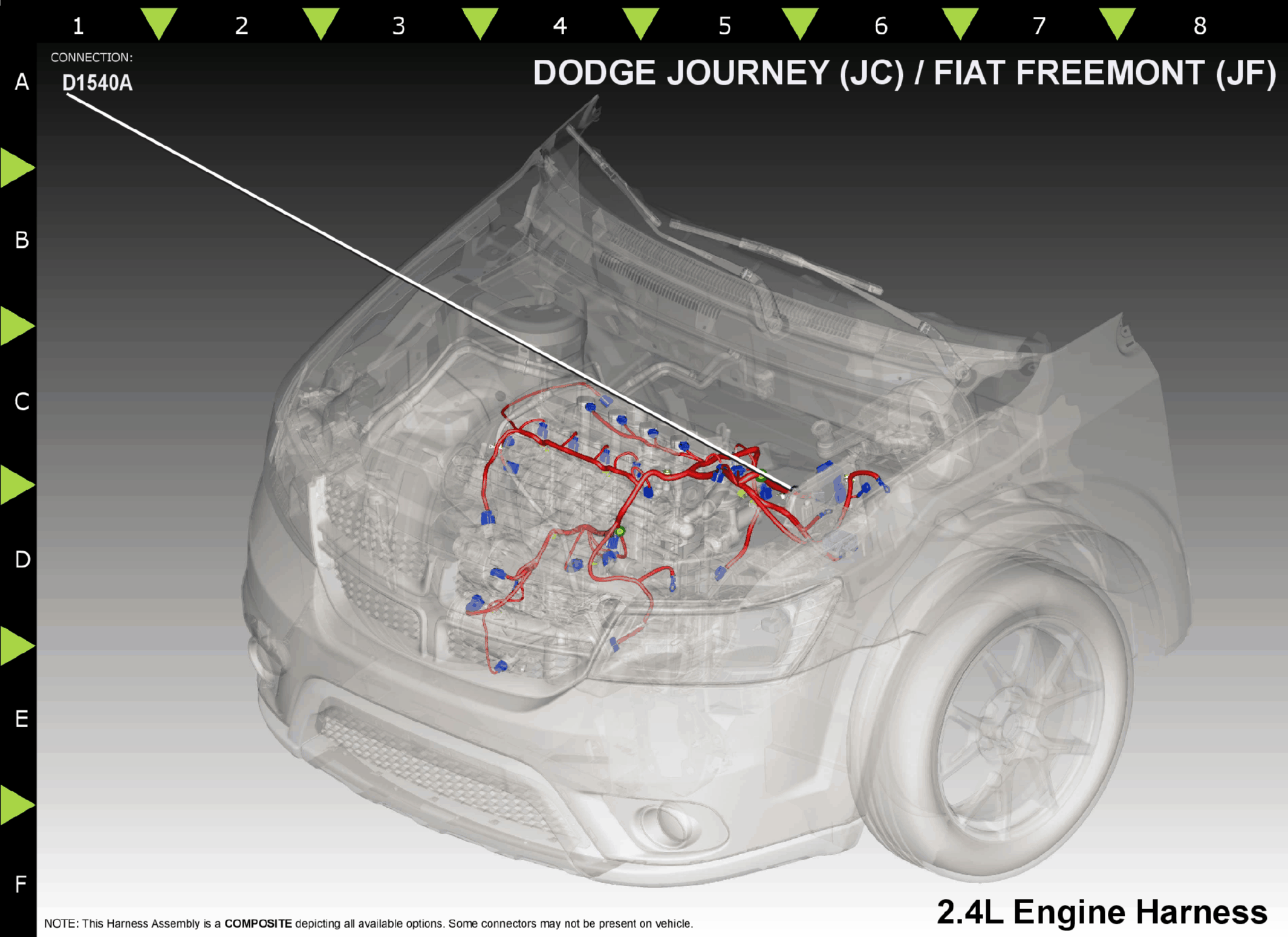

Fig 2: Sensor-Oxygen 1/2 Component Location

GCWD1188181

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

K299

BR/WT

16

O2 1/2 HEATER CONTROL SUPPLY

N/A

2

Z902

BK

16

GROUND

N/A

3

K904

DB/DG

18

O2 RETURN (DOWNSTREAM)

N/A

4

K141

DB/YL

18

O2 1/2 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
