Sensor-Oxygen 1/1 (3.6L) (D1539A)

Harness-Family: Engine

Color: NATURAL

Gender: MALE

Part Number: 184408-1

Part Description: SEALED SENSOR CONNECTOR - KEY G-C3)

Connector No: D1539A

Option: 3.6L

Repair Kit Part Number: 05161931AA

Cavity Count: 4

Fig 1: Sensor-Oxygen 1/1 Connector End View (3.6L)

Courtesy of CHRYSLER

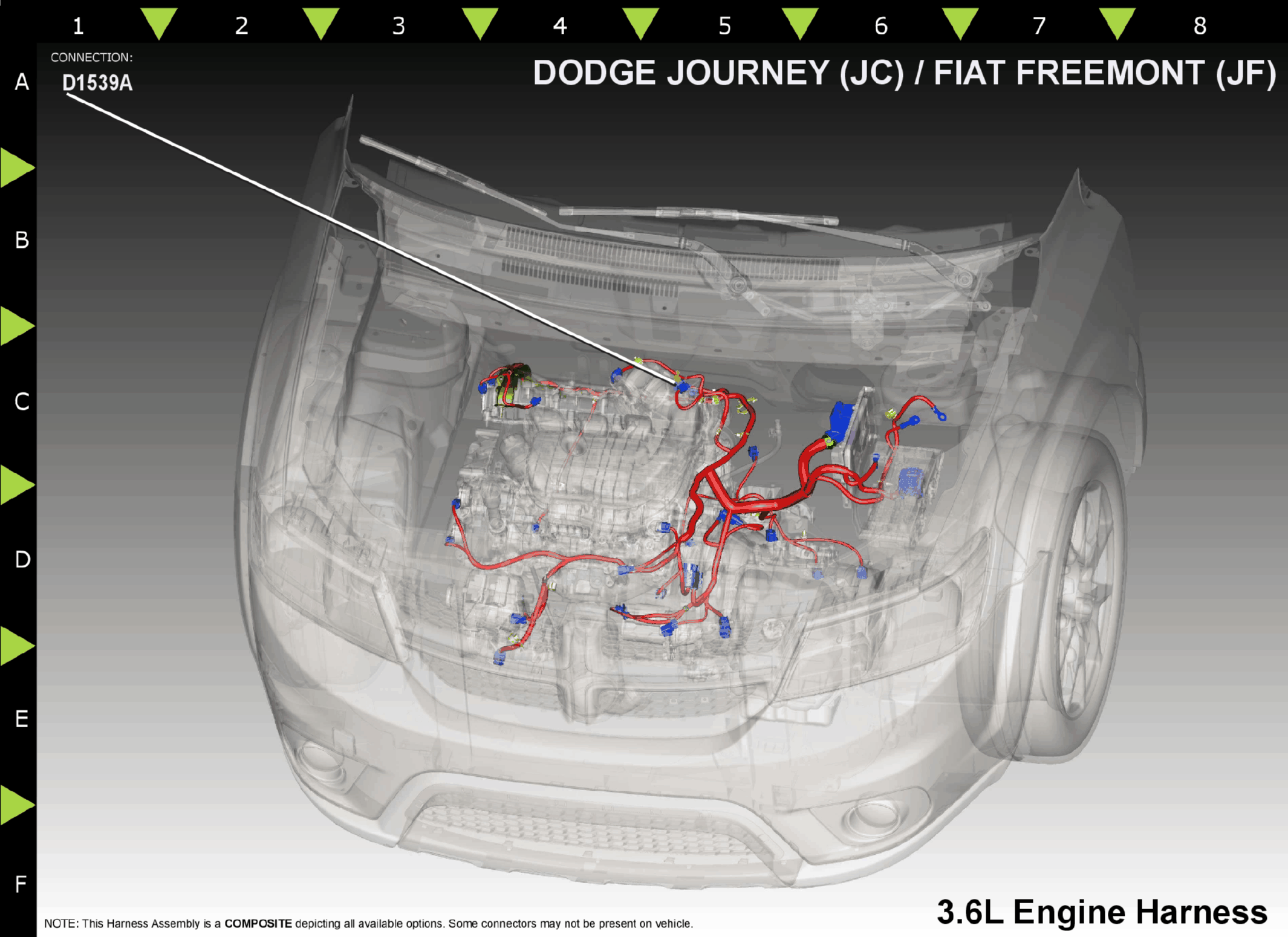

Fig 2: Sensor-Oxygen 1/1 Component Location (3.6L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K99

BR/LG

O2 1/1 HEATER CONTROL

N/A

Z902

GROUND

N/A

K902

BR/DG

.80

O2 RETURN (UPSTREAM)

N/A

K41

DB/LB

.80

O2 1/1 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
