Sensor-Output Speed (41TE/2.4L) (D1545A)

Harness-Family: Transmission

Color: ~~

Gender: FEMALE

Part Number: 13599039

Part Description: Not Available

Connector No: D1545A

Option: 41TE/2.4L

Repair Kit Part Number: Not Available

Cavity Count: 2

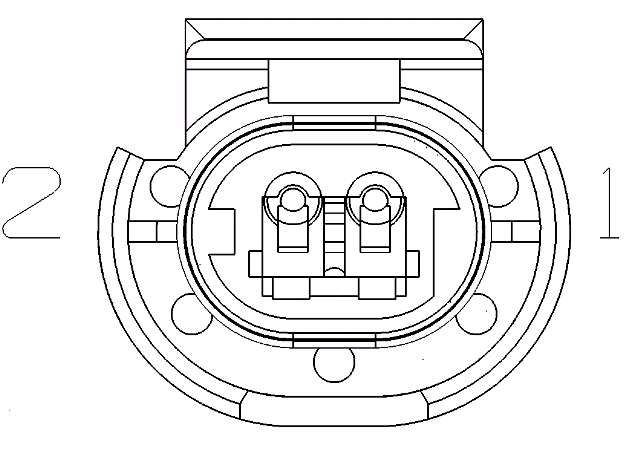

Fig 1: Sensor-Output Speed Connector End View (41TE/2.4L)

Courtesy of CHRYSLER

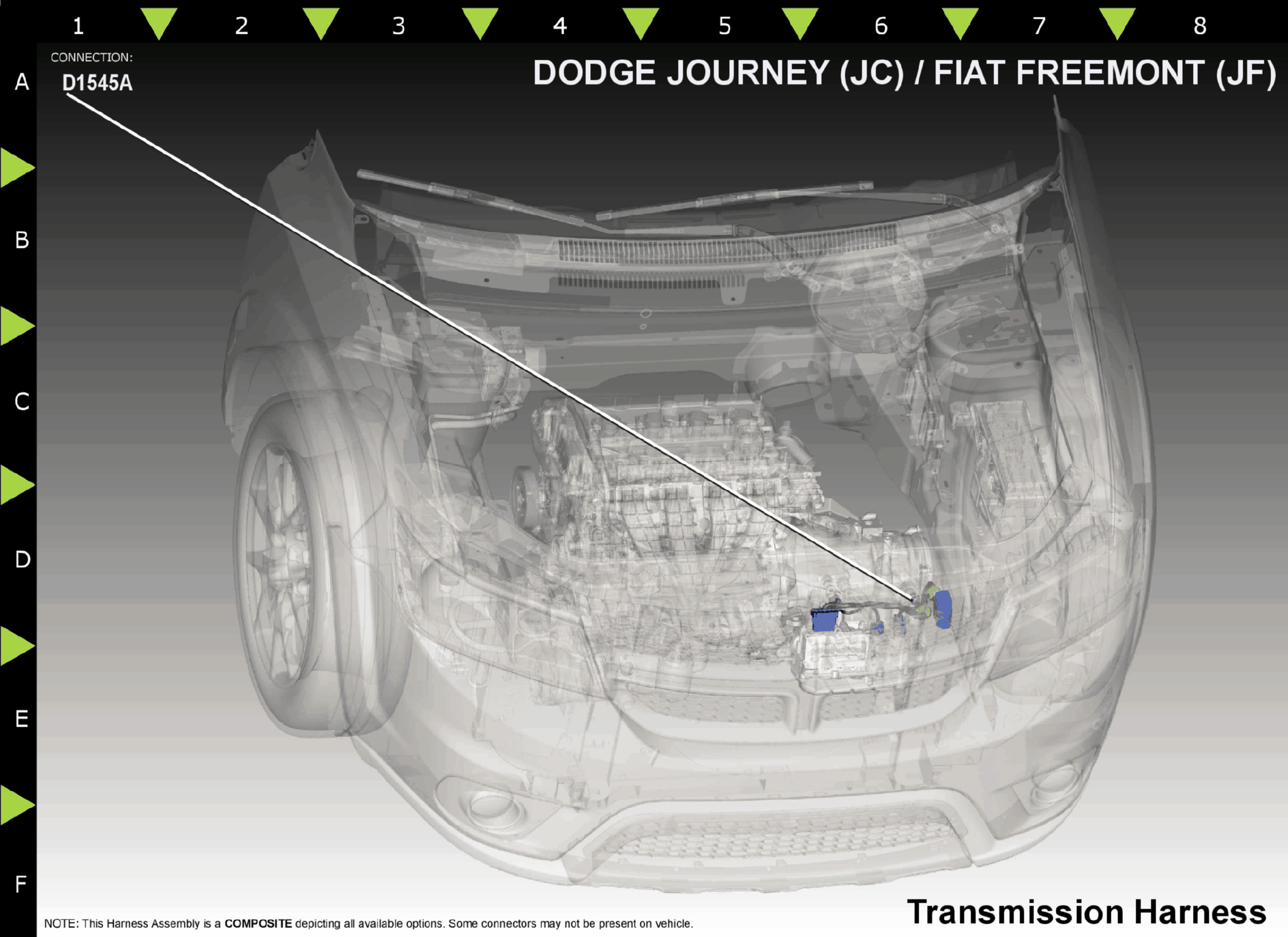

Fig 2: Sensor-Output Speed Component Location (41TE/2.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T13

DG/VT

SPEED SENSOR GROUND

N/A

T14

DG/BR

OUTPUT SPEED SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
