Sensor-Mass Air Flow (D1538A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 4510820

Part Description: Not Available

Connector No: D1538A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

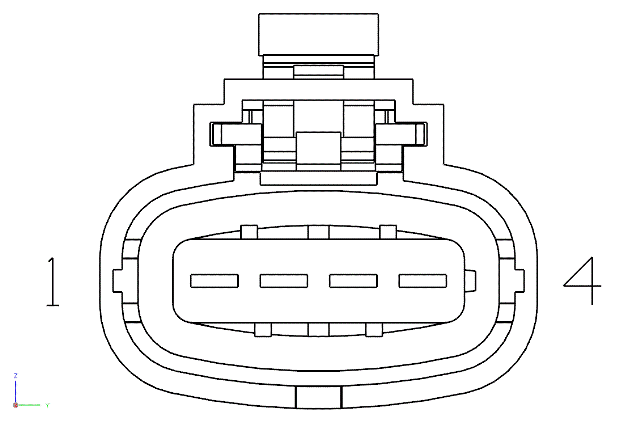

Fig 1: Sensor-Mass Air Flow Connector End View

GCWD1079561

Courtesy of CHRYSLER

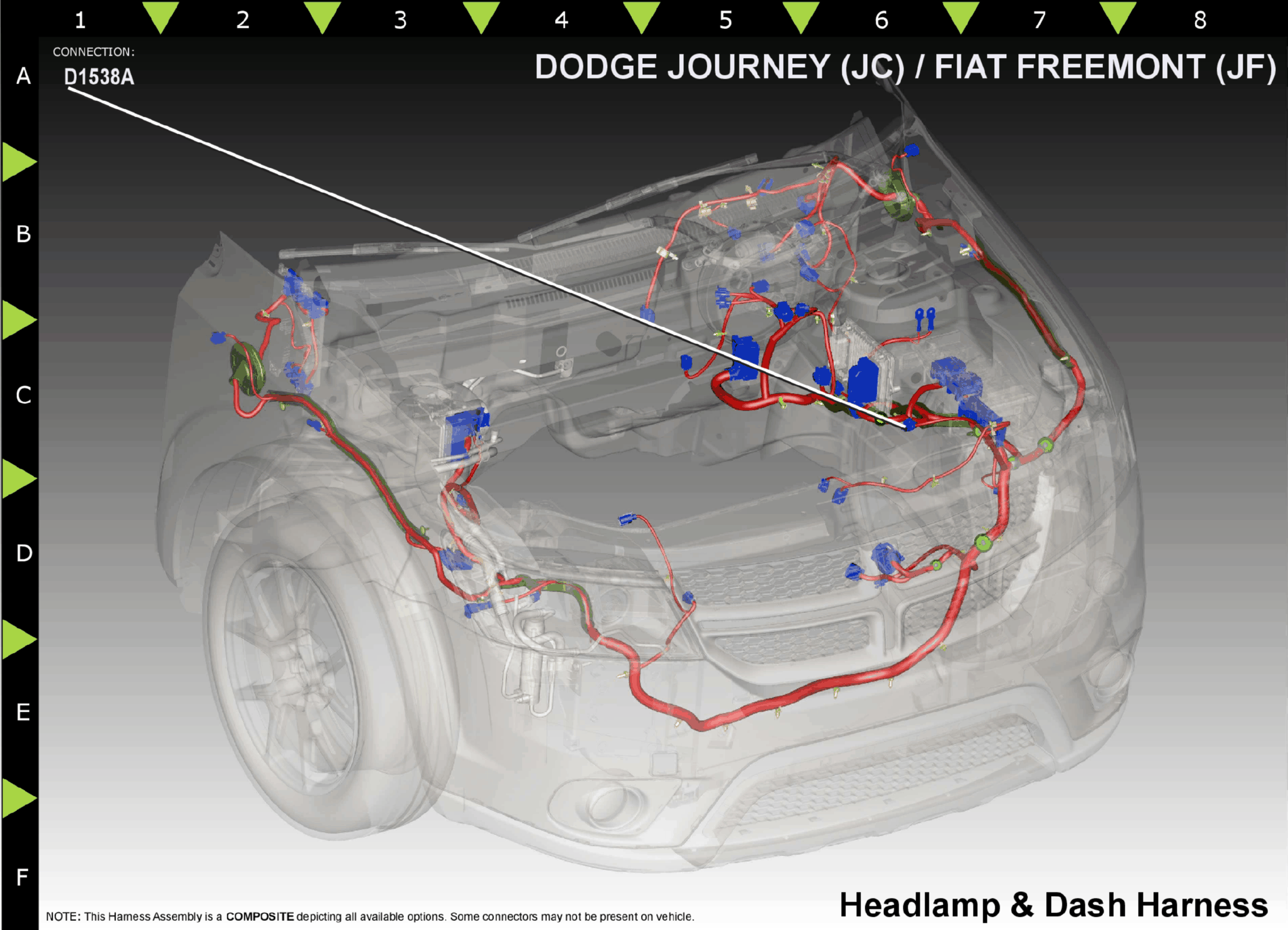

Fig 2: Sensor-Mass Air Flow Component Location

GCWD1188369

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F343

BR/YL

18

FUSED ASD RELAY OUTPUT

N/A

2

K957

BK/YL

18

MAF GROUND

N/A

3

K362

BR

18

MASS AIR FLOW TEMP SIGNAL

N/A

4

K157

BR/WT

18

MAF SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
