Sensor-Manifold Absolute Pressure (2.4L) (D1537A)

Harness-Family: Engine

Color: GRAY

Gender: FEMALE

Part Number: 13511995

Part Description: GT 150 SEALED Female CONNECTOR ASSEMBLY

Connector No: D1537A

Option: 2.4L

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Sensor-Manifold Absolute Pressure Connector End View (2.4L)

Courtesy of CHRYSLER

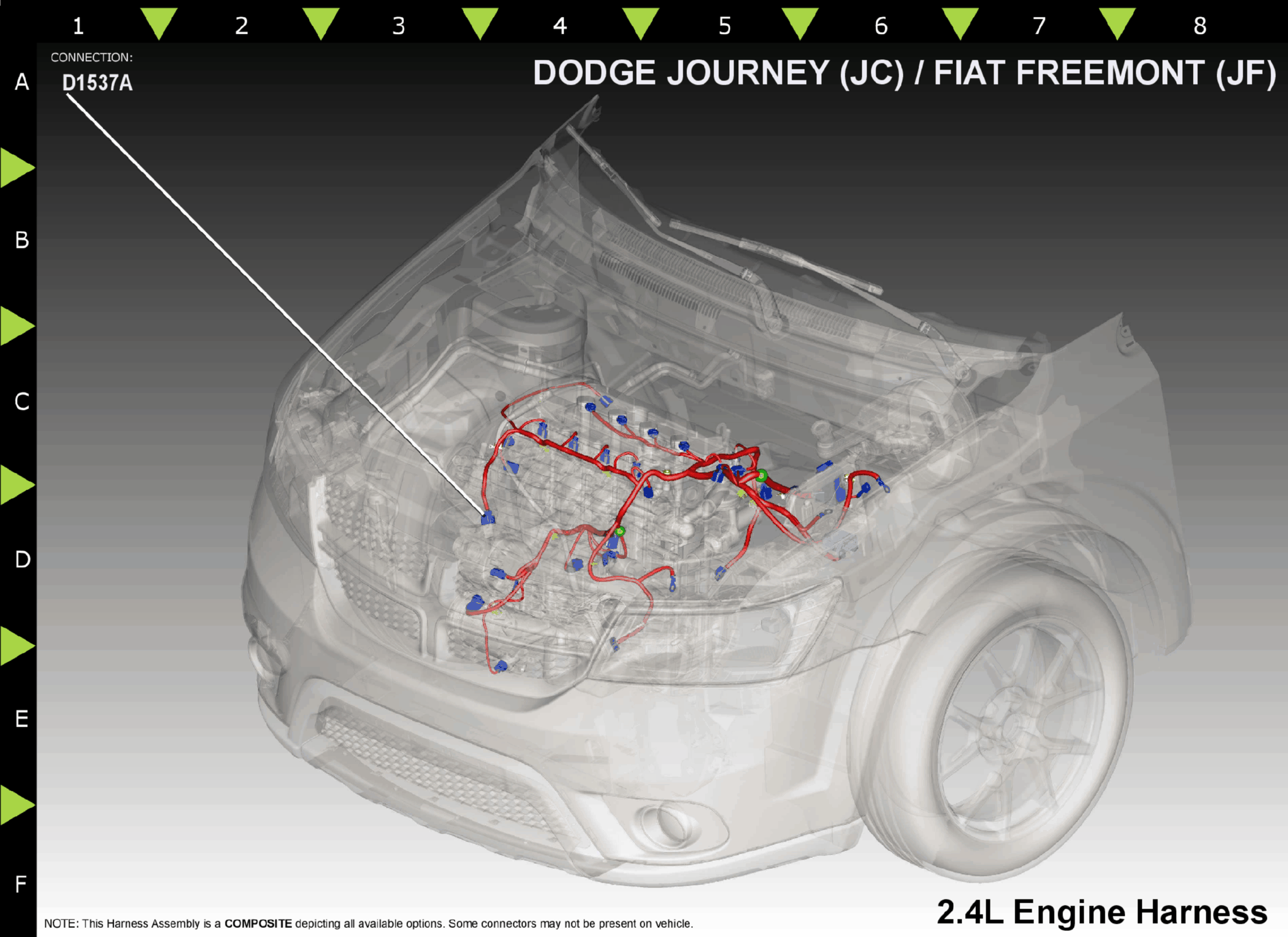

Fig 2: Sensor-Manifold Absolute Pressure Component Location (2.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

VT/BR

MAP SIGNAL

N/A

K900

DB/DG

SENSOR GROUND

N/A

F856

YL/PK

5 VOLT SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
